A 20-LC-TT

Active

Assmann WSW Components

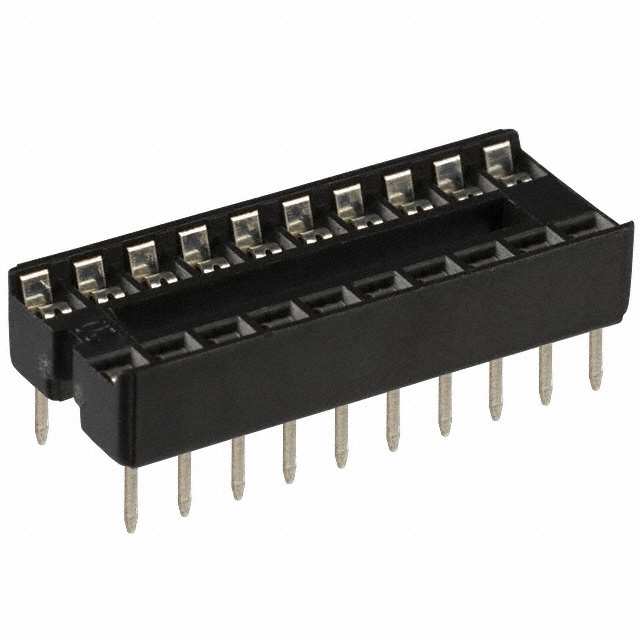

CONN IC DIP SOCKET 20POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 20POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A 20-LC-TT

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

CONN IC DIP SOCKET 20POS TIN

Part	Housing Material	Type	Type	Type	Material Flammability Rating	Contact Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Current Rating (Amps)	Features	Contact Finish - Post	Termination Post Length	Termination Post Length	Contact Material - Post	Pitch - Post	Pitch - Post	Mounting Type	Number of Positions or Pins (Grid)
Assmann WSW Components A 20-LC-TT	Polybutylene Terephthalate (PBT)	0.3 "	7.62 mm	DIP	UL94 V-0	30 mOhm	85 °C	-55 °C	Solder	0.1 in	2.54 mm	Phosphor Bronze	1 A	Open Frame	Tin	3.15 mm	0.124 in	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
