PEWCT1112
ActivePasternack

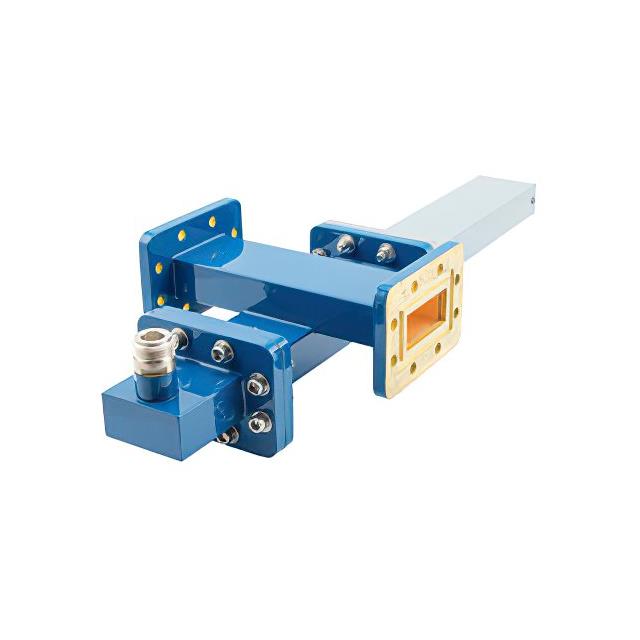

WR-137 WAVEGUIDE 20 DB CROSSGUID
PEWCT1112
ActivePasternack
WR-137 WAVEGUIDE 20 DB CROSSGUID
Description
General part information
PEWCT1112
RF Directional Coupler
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWCT1112 |
|---|---|
| Applications | Radar |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency (Max) | 8.2 GHz |
| Frequency (Min) | 5.85 GHz |
| Insertion Loss | 0.1 dB |
| Isolation | 20 dB |
| Package / Case | Module |
| Power - Max | 6 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
