LMR-400-FR-TF-NMRA(QTY:70ft)
ActiveMcGill Microwave Systems
COAX CBL TNC TO N-TYPE 70'
LMR-400-FR-TF-NMRA(QTY:70ft)
ActiveMcGill Microwave Systems
COAX CBL TNC TO N-TYPE 70'
Description
General part information
LMR-400-FR-TF-NMRA(QTY:70ft)

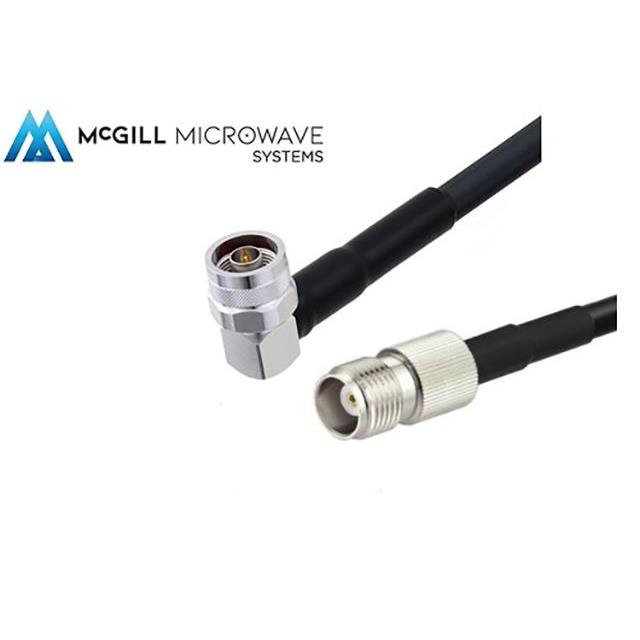

Cable Assembly Coaxial TNC to N-Type LMR 400 840.0" (21.3m) 70.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-FR-TF-NMRA(QTY:70ft) |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 70 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | N-Type, TNC |
