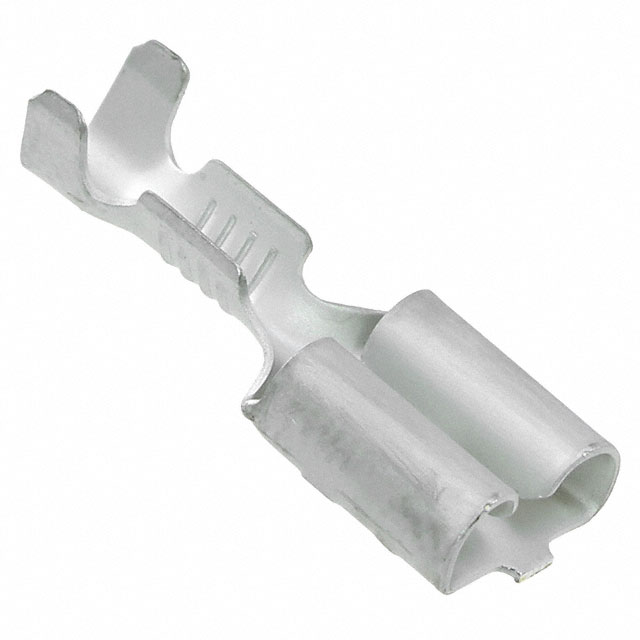

094030 Series

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Termination	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Tab Width	Tab Thickness	Tab Length	Terminal Type	Length - Overall	Contact Material	Gender	Contact Finish	Thickness	Width - Outer Edges	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Terminal Angle
Molex 0940304030	0.106 in	0.169 in	Crimp	Free Hanging (In-Line)	16 AWG	14 AWG	Non-Insulated	0.187 in	0.032 in	0.248 in	Standard	0.594 in	Brass	Female
Molex 0940304021	0.079 in	0.13 in	Crimp	Free Hanging (In-Line)	24 AWG	18 AWG	Non-Insulated	0.187 in	0.032 in	0.248 in	Standard	0.594 in	Brass	Female	Tin
Molex 0940304071	0.079 in	0.13 in	Crimp	Free Hanging (In-Line)	20.5 AWG	18 AWG	Non-Insulated	0.25 in	0.032 in	0.618 in	Standard	1.102 in	Brass	Male	Tin
Molex 0940302690
Molex 0940303961
Molex 0940306980			Crimp	Free Hanging (In-Line)	18 AWG	12 AWG	Non-Insulated				Circular	1.26 in	Brass		Tin	0.032 in	0.551 in	0.3125 in	Stud	16 Stud 5 Stud
Molex 0940303910	0.106 in	0.169 in	Crimp	Free Hanging (In-Line)	16 AWG	14 AWG	Non-Insulated	0.25 in	0.032 in	0.303 in	Standard	0.756 in	Brass	Female
Molex 0940305000	0.079 in	0.13 in	Crimp	Free Hanging (In-Line) Right Angle	24 AWG	18 AWG	Non-Insulated	0.25 in	0.032 in	0.299 in	Angled Flag		Brass	Female							90 °
Molex 0940306970
Molex 0940306990			Crimp	Free Hanging (In-Line)	8 AWG	4 AWG	Non-Insulated				Circular	1.26 in	Brass		Tin	0.032 in	0.551 in	0.3125 in	Stud	16 Stud 5 Stud
