Specification	FH40-60S-0.5SV(99)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, 1 Sided, Vertical
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.228 in
Housing Color	Beige
Housing Material	Liquid Crystal Polymer, LCP
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Surface Mount
Number of Positions	60
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

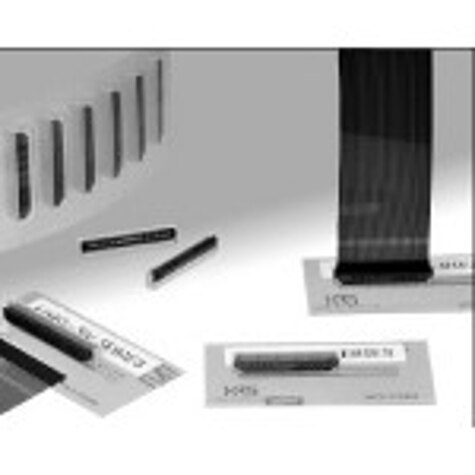

FH40 Series

Part	Mounting Type	Contact Finish	Number of Positions	Contact Material	Housing Material	Actuator Material	Connector/Contact Type	Pitch	FFC, FCB Thickness	Locking Feature	Termination	Flat Flex Type	Height Above Board	Cable End Type	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Voltage Rating	Current Rating	Mating Cycles	Contact Finish Thickness	Housing Color	Actuator Color	Number of Positions (Loaded)	Number of Positions (Total)
Hirose Electric Co Ltd FH40-10S-0.5SV	Surface Mount	Gold	10	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles	2 µin	Beige	Black
Hirose Electric Co Ltd FH40-50S-0.5SV	Surface Mount	Gold	50	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles	2 µin	Beige	Black
Hirose Electric Co Ltd FH40-40S-0.5SV	Surface Mount	Gold	40	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles	2 µin	Beige	Black
Hirose Electric Co Ltd FH40-40S-0.5SV(99)	Surface Mount	Gold	40	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles		Beige	Black
Hirose Electric Co Ltd FH40-80(40)SB-1SV	Surface Mount	Gold		Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles	2 µin	Beige	Black	40	80
Hirose Electric Co Ltd FH40-24S-0.5SV(99)	Surface Mount	Gold	24 pos	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles		Beige	Black
Hirose Electric Co Ltd FH40-20S-0.5SV(99)	Surface Mount	Gold	20	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles		Beige	Black
Hirose Electric Co Ltd FH40-24S-0.5SV	Surface Mount	Gold	24 pos	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles	2 µin	Beige	Black
Hirose Electric Co Ltd FH40-10S-0.5SV(99)	Surface Mount	Gold	10	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles		Beige	Black
Hirose Electric Co Ltd FH40-45S-0.5SV(99)	Surface Mount	Gold	45	Phosphor Bronze	LCP Liquid Crystal Polymer	Liquid Crystal Polymer (LCP)	1 Sided Contacts Vertical	0.02 in	0.3 mm	Flip Lock	Solder	FPC	0.228 in	Tabbed	-40 °C	105 °C	UL94 V-0	50 V	0.5 A	20 cycles		Beige	Black
