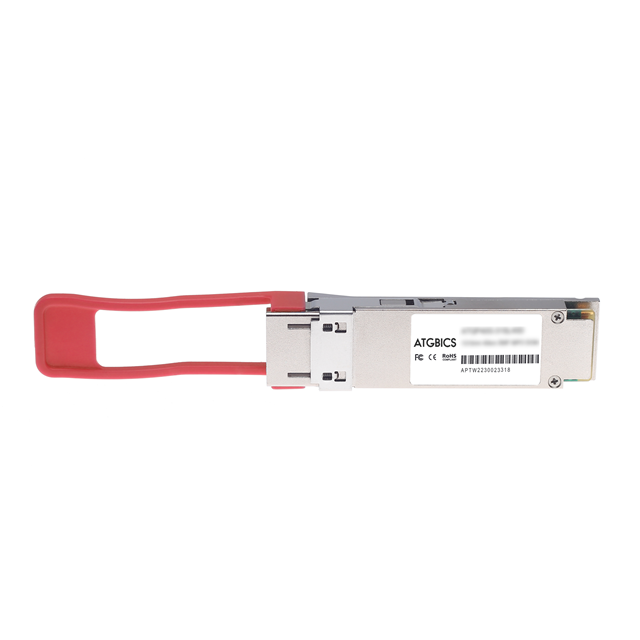

QSFP-100G-SM-SR-C

Active

ATGBICS

COMPATIBLE QSFP28 100G

Search across all available documentation for this part.

Active

ATGBICS

COMPATIBLE QSFP28 100G

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transceiver Module Networking, General Purpose 100Gbps 1310nm 3.3V LC Duplex Pluggable, QSFP28

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	QSFP-100G-SM-SR-C	QSFP-100G Series

Applications	General Purpose, Networking	General Purpose, Networking
Cable Connectors	-	QSFP28 to QSFP28
Cable Type	-	Round
Color	-	Aqua, Orange, Black
Connector Type	LC Duplex	MPO-12, LC Duplex, Plug to Plug
Data Rate	100 Gbps	100 - 112 Gbps
Fastening Type	-	Push-Pull
Features	-	Active, Passive
Frequency - Max	-	100 Gbps
Gender	-	Male to Male
Length	-	1.64 - 49.21 ft
Length	-	1 - 500 m
Length	-	20 - 30 m
Length	-	65.62 - 98.43 ft
Mounting Type	Pluggable, QSFP28	Pluggable, QSFP28
Number of Positions	-	38
Operating Temperature	-	70 °C
Operating Temperature	-	0 °C
Shielding	-	Unshielded
Usage	-	Network, Data Center Server Rack, Ethernet
Voltage - Supply	3.3 V	3.3 V
Wavelength	1310 nm	850 - 1310 nm
Wire Gauge	-	26 - 30 AWG

COMPATIBLE QSFP28 100G

Part	Voltage - Supply	Applications	Mounting Type	Connector Type	Data Rate	Wavelength	Fastening Type	Cable Connectors	Usage	Length [x]	Length [x]	Features	Shielding	Cable Type	Gender	Color	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ATGBICS QSFP-100GBASE-SR4-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	MPO-12	100 Gbps	850 nm
ATGBICS QSFP-100G-ER4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-ER4-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-AOC3M-C				Plug to Plug			Push-Pull	QSFP28 to QSFP28	Network	9.84 ft	3 m	Active	Unshielded	Round	Male to Male	Aqua
ATGBICS QSFP-100G-LR4-T2-JNP-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-CWDM4-S-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-LR4-T2-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-LR4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-AOC20M-C				Plug to Plug			Push-Pull	QSFP28 to QSFP28	Data Center Server Rack, Ethernet, Network			Active	Unshielded	Round	Male to Male	Aqua, Orange	70 °C	0 °C	20 m	65.62 ft
ATGBICS QSFP-100G-ECWDM4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
