PKA.M1.0SL.NZ

Active

LEMO

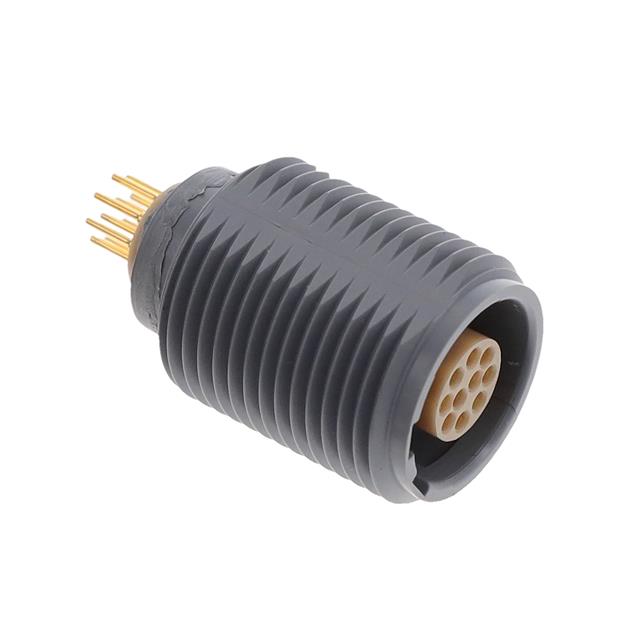

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKA.M1.0SL.NZ

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.28
		10	$ 32.70
		25	$ 29.66
		50	$ 27.61
		100	$ 25.75
		250	$ 23.56

Description

General part information

PKA.M1 Series

10 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKA.M1.0SL.NZ	PKA.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Black, Gray, Yellow, Red, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Shape	-	Circular
Contact Type	-	Solder Cup
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Housing Color	-	Gray
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Right Angle, Panel Mount
Note	-	Contacts Not Included
Number of Positions	10	10 - 14
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M10	M10, M14
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Type	-	For Female Sockets

PKA.M1 Series

CONN RCPT FMALE 10POS GOLD SLDR

Part	Connector Type	Termination	Applications	Color	Shell Material	Fastening Type	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Shell Size - Insert	Shielding	Insert Material	Primary Material	Mounting Feature	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Shape	Type	Contact Type	Note	Housing Color
LEMO PKA.M1.0NL.VN	Receptacle, Female Sockets	Solder	Automotive, Industrial, Medical, Testing Equipment & Measurement	Black	Polysulfone (PSU)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut	Panel Mount, Right Angle, Through Hole	A	150 °C	-50 °C	10
LEMO PKA.M1.4SL.LZ	Receptacle, Female Sockets		Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	2 A	M14	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut		A	170 °C	-50 °C	14
LEMO PKA.M1.0SL.LN	Receptacle, Female Sockets		Automotive, Industrial, Medical, Testing Equipment & Measurement		Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut		A	170 °C	-50 °C	10
LEMO PKA.M1.4SL.LJ	Receptacle, Female Sockets		Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray, Yellow	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	2 A	M14	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut		A	170 °C	-50 °C	14
LEMO PKA.M1.0SL.NZ	Receptacle, Female Sockets	Solder	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole	A	170 °C	-50 °C	10
LEMO PKA.M1.0SL.NG	Receptacle, Female Sockets	Solder	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole	A	170 °C	-50 °C	10
LEMO PKA.M1.0SL.NR	Receptacle, Female Sockets	Solder	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray, Red	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole	A	170 °C	-50 °C	10
LEMO PKA.M1.4SL.NG	Receptacle, Female Sockets	Solder	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	2 A	M14	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole	A	170 °C	-50 °C	14
LEMO PKA.M1.0SL.LG	Receptacle, Female Sockets		Automotive, Industrial, Medical, Testing Equipment & Measurement	Gray	Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50	Gold	3 A	M10	Unshielded	Polyetheretherketone (PEEK)	Plastic	Front and Rear Side Nut		A	170 °C	-50 °C	10
LEMO PKA.M1.4SL.LZZ	Receptacle Housing				Polyetherimide (PEI)	Detent Lock, Push-Pull	IP50			M14		Polyetheretherketone (PEEK)		Bulkhead - Rear Side Nut		A	170 °C	-50 °C	14	Circular	For Female Sockets	Solder Cup	Contacts Not Included	Gray
