M3CCA-5036J
Active3M
IDC CABLE - MKC50A/MC50G/MKC50A
Deep-Dive with AI
Search across all available documentation for this part.
M3CCA-5036J
Active3M
IDC CABLE - MKC50A/MC50G/MKC50A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3CCA-5036J | M3CCA Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | - | 1.52 - 508 mm |
| Length | - | 1.67 - 5 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 m |
| Number of Positions | 50 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3CCA Series
IDC CABLE - MKC10A/MC10F/MKC10A
| Part | Connector Type | Color | Length [x] | Length [x] | Cable Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Shielding | Pitch - Cable | Pitch - Cable | Features | Pitch - Connector | Pitch - Connector | Number of Rows | Number of Positions | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Socket to Socket | Multiple, Twisted Pair (Flat) | 1.02 m | 3.34 ft | IDC | Gold | 0.76 Ám | 30 Áin | 10 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | ||||||
Socket to Socket | Multiple, Twisted Pair (Flat) | 1.02 m | 3.34 ft | IDC | Gold | 0.76 Ám | 30 Áin | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | 16 | ||||||
Socket to Socket | 914.4 mm | 3 ft | IDC | Gold | 0.76 Ám | 30 Áin | 50 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | |||||||
Socket to Socket | Multiple, Twisted Pair (Flat) | IDC | Gold | 0.76 Ám | 30 Áin | 26 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | 508 mm | 1.67 ft | ||||||
Socket to Socket | 914.4 mm | 3 ft | IDC | Gold | 0.76 Ám | 30 Áin | 30 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | |||||||
Socket to Socket | Multiple, Twisted Pair (Flat) | IDC | Gold | 0.76 Ám | 30 Áin | 40 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | 508 mm | 1.67 ft | ||||||
Socket to Socket | 457.2 mm | 1.5 ft | IDC | Gold | 0.76 Ám | 30 Áin | 24 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | |||||||
Socket to Socket | Multiple, Ribbon | 457.2 mm | 1.5 ft | IDC | Gold | 0.76 Ám | 30 Áin | 14 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | ||||||
Socket to Socket | IDC | Gold | 0.76 Ám | 30 Áin | 10 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 | 152.4 mm | 6 " | 0.5 ' | ||||||
Socket to Socket | Multiple, Ribbon | 914.4 mm | 3 ft | IDC | Gold | 0.76 Ám | 30 Áin | 34 | Unshielded | 0.05 " | 1.27 mm | Polarizing Key | 0.1 in | 2.54 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.33 | |
| 10 | $ 11.79 | |||
| 25 | $ 10.66 | |||
| 50 | $ 9.89 | |||
| 100 | $ 9.20 | |||
| 250 | $ 8.38 | |||
| 500 | $ 7.83 | |||
| 1000 | $ 7.34 | |||
Description
General part information
M3CCA Series

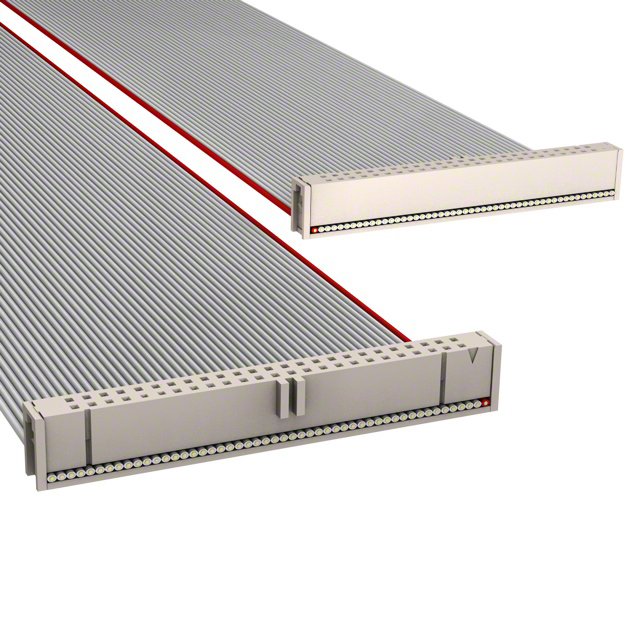

50 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
