B82559A0203A019

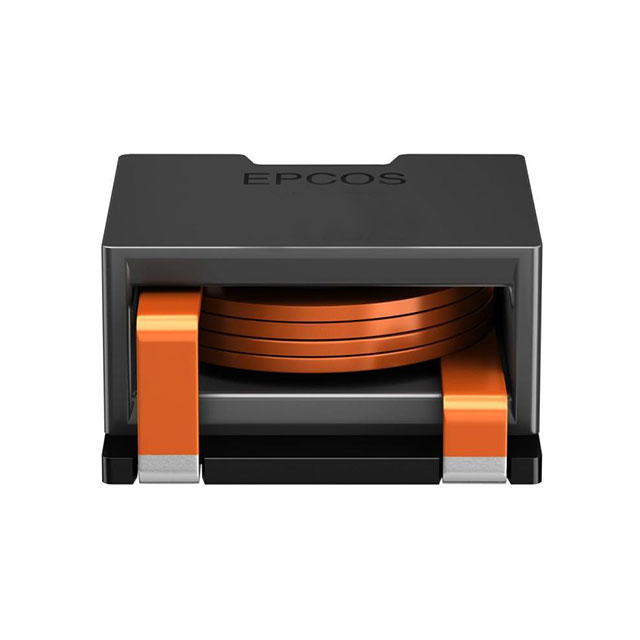

20 µH Shielded Drum Core, Wirewound Inductor 14.75mOhm Max Nonstandard, 3 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B82559A0203A019 |
|---|---|
| Current - Saturation (Isat) | 10.6 A |
| DC Resistance (DCR) (Max) | 14.75 mOhm |
| Frequency - Self Resonant | 2 MHz |
| Height - Seated (Max) | 0.398 in |
| Inductance | 20 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 3 Leads |
| Package Name | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.807 in |
| Size / Dimension Width | 0.807 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
