387006916
ActiveLaird Thermal Systems, Inc.
OTX20,31,F1,0808,GG,W2.25
387006916
ActiveLaird Thermal Systems, Inc.
OTX20,31,F1,0808,GG,W2.25
Description
General part information
387006916

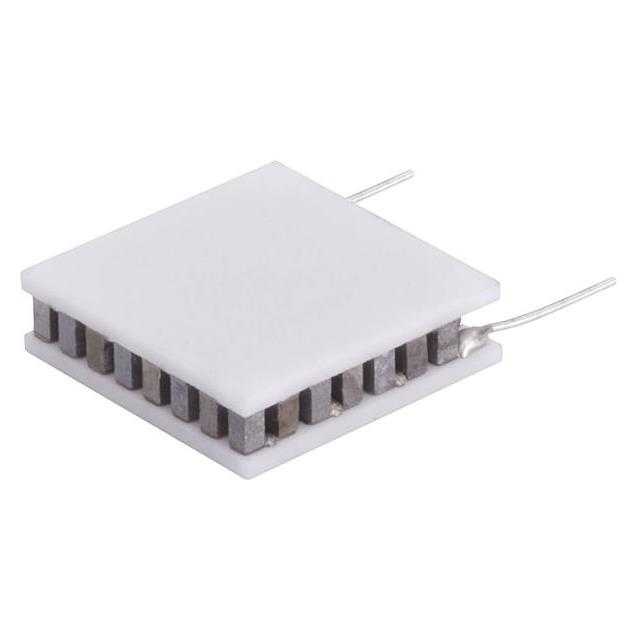

Peltier Module 4.3W @ 27°C 2 A 120°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 387006916 |
|---|---|
| Current - Max | 2 A |
| Delta Tmax | 72.9 °C |
| Features | Lead Wires |
| Height | 2.5 mm |
| Maximum Power Dissipation (Qmax) | 4.3 W |
| Number of Stages | 1 |
| Operating Temperature | 120 °C |
| Resistance | 1.67 Ohms |
| Size / Dimension Length | 8.1 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 8.1 mm |
| Voltage - Max | 3.6 V |
