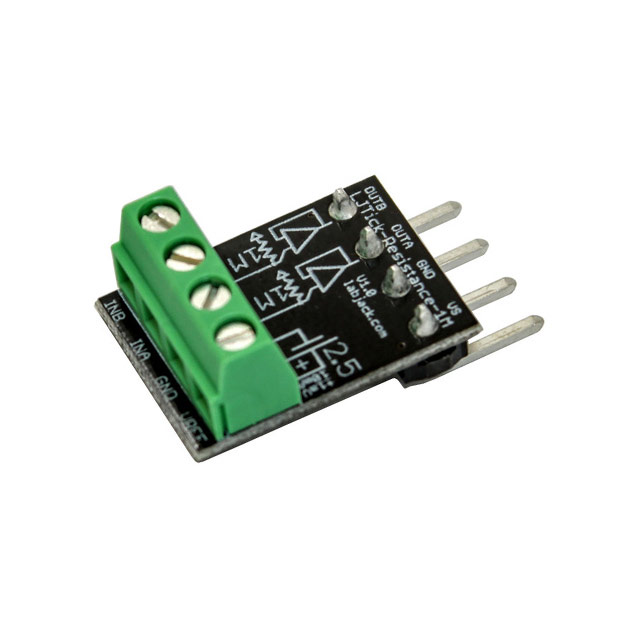

LJTICK-RESISTANCE-1M

Active

Labjack Corporation

RESISTANCE MODULE FOR MEASURE

Search across all available documentation for this part.

Active

Labjack Corporation

RESISTANCE MODULE FOR MEASURE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.69

General part information

Option Card, Voltage Divider T4, T7, U3, U6, UE9 Series

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LJTICK-RESISTANCE-1M	LJTICK Series

Accessory Type	Voltage Divider, Option Card	Relay Driver, Option Card, Voltage Divider, Voltage Amplifier, Voltage Regulation, Input Buffer, Voltage Reference, Output Buffer, Output, Signal Amplifier, Current Shunt, Prototyping
For Use With/Related Products	UE9 Series, T4, U3, U6, T7	UE9 Series, T4, U3, U6, T7
Specifications	1	0.1 - 100
Specifications	-	2 Channel, Analog (2), 1/4 Ratio

RELAY DRIVER MODULE 2 I/O LINES

Part	For Use With/Related Products	Specifications	Accessory Type	Specifications
Labjack Corporation LJTICK-RELAYDRIVER	T4, T7, U3, U6, UE9 Series	2 Channel	Option Card, Relay Driver
Labjack Corporation LJTICK-RESISTANCE-1M	T4, T7, U3, U6, UE9 Series		Option Card, Voltage Divider	1
Labjack Corporation LJTICK-DIGITALOUT5V	T4, T7, U3, U6, UE9 Series		Option Card, Voltage Amplifier	5 V
Labjack Corporation LJTICK-LVDIGITALIO	T4, T7, U3, U6, UE9 Series		Option Card, Voltage Regulation
Labjack Corporation LJTICK-INBUFF	T4, T7, U3, U6, UE9 Series		Input Buffer, Option Card
Labjack Corporation LJTICK-VREF-41	T4, T7, U3, U6, UE9 Series		Option Card, Voltage Reference	4.096 VDC
Labjack Corporation LJTICK-VREF-25	T4, T7, U3, U6, UE9 Series		Option Card, Voltage Reference	2.5 VDC
Labjack Corporation LJTICK-OUTBUFF	T4, T7, U3, U6, UE9 Series		Option Card, Output Buffer
Labjack Corporation LJTICK-DAC	T4, T7, U3, U6, UE9 Series	Analog (2)	Option Card, Output
Labjack Corporation LJTICK-DIVIDER-4	T4, T7, U3, U6, UE9 Series	1/4 Ratio	Option Card, Voltage Divider
