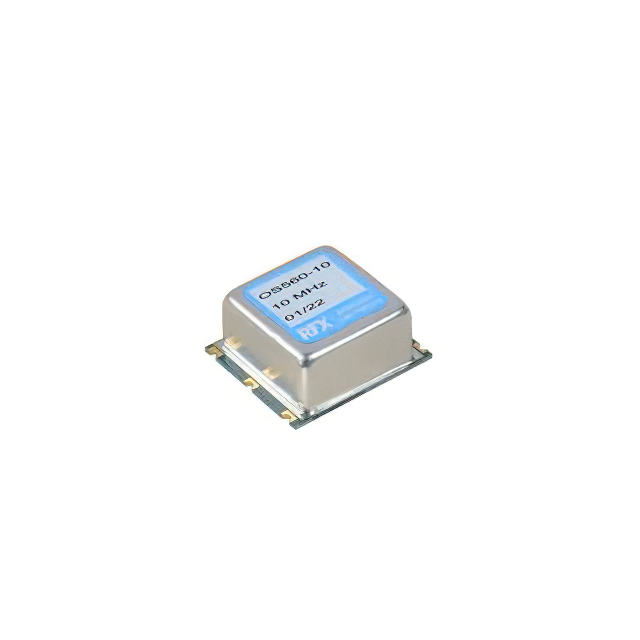

OS560-1006-028
ActiveRFX Limited
LOW PHASE NOISE -168DBC/HZ OCXO
OS560-1006-028
ActiveRFX Limited
LOW PHASE NOISE -168DBC/HZ OCXO
Description
General part information
OS560-1006-028
100 MHz OCXO CMOS Oscillator 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | OS560-1006-028 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 100 MHz |
| Frequency Stability | 5 ppb |
| Height - Seated (Max) | 0.413 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output | CMOS |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.866 in |
| Type | OCXO |
| Voltage - Supply | 12 VDC |
