PE9862B/NF-20
ActivePasternack

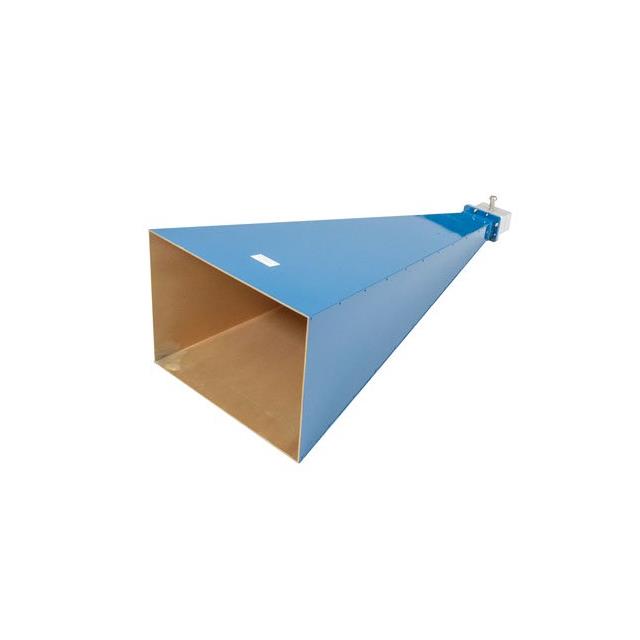

WR-229 STANDARD GAIN HORN ANTENN
PE9862B/NF-20
ActivePasternack
WR-229 STANDARD GAIN HORN ANTENN
Description
General part information
PE9862B/NF-20
RF ANTENNA General Purpose Horn N Type Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9862B/NF-20 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 4.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 4.9 GHz |
| Frequency Range (Min) | 3.3 GHz |
| Gain | 20 dBi |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
