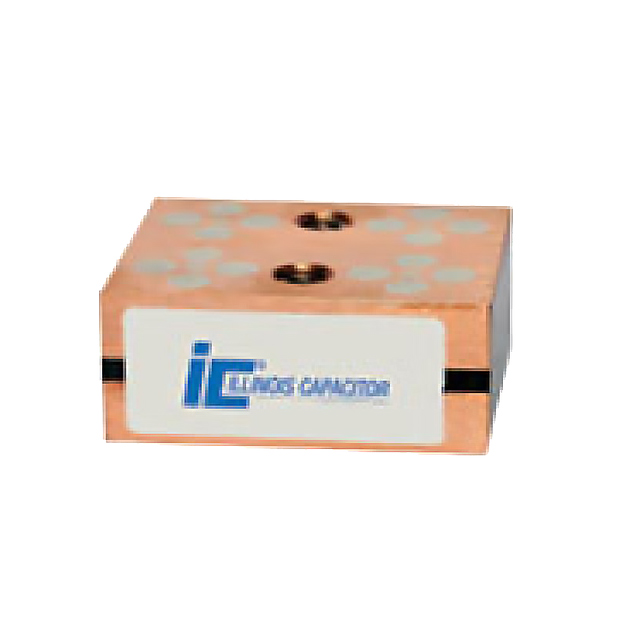

Specification	334HC3700K2EM8

Applications	High Pulse, DV/DT, Conduction Cooled
Capacitance	0.33 µF
Dielectric Material	Polypropylene (PP)
ESR (Equivalent Series Resistance)	1 mOhm
Height - Seated (Max)	2.618 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Nonstandard
Size / Dimension Length	2.205 in
Size / Dimension Width	1.189 in
Termination	Threaded, Female
Tolerance	10 %
Voltage Rating - AC	700 V
