ALPHA1A/3M/BNCM/S/S/11

Active

Siretta Ltd

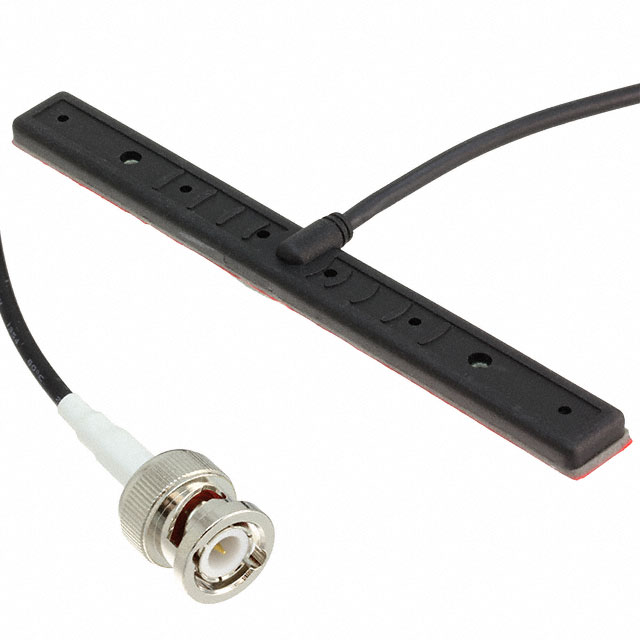

RF ANT 868/900MHZ FLAT BAR BNC

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 868/900MHZ FLAT BAR BNC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ALPHA1A/3M/BNCM/S/S/11	ALPHA1 Series

Antenna Type	Flat Bar	Flat Bar
Applications	Zigbee™, Bluetooth, GPRS, WLAN, GSM, UMTS	Zigbee™, Bluetooth, GPRS, WLAN, GSM, UMTS
Frequency (Center/Band)	915 MHz, 2.4 GHz, 1.8 GHz, 2.1 GHz, 1.9 GHz, 950 MHz, 900 MHz, 868 MHz	1.8 - 950 MHz
Frequency Group	Wide Band	Wide Band
Gain	3.8 dBi	3.8 dBi
Height (Max)	4 mm	4 mm
Height (Max) [Max] [z]	0.157 in	0.157 in
Mounting Type	Adhesive	Adhesive
Number of Bands	8	8
RF Family/Standard	Cellular, Bluetooth, 802.15.4, WiFi	Cellular, Bluetooth, 802.15.4, WiFi
Termination	BNC Male	BNC Male
VSWR	2	2

RF ANT 868/900MHZ FLAT BAR BNC

Part	Mounting Type	Frequency Group	VSWR	RF Family/Standard	Height (Max)	Height (Max) [Max] [z]	Frequency (Center/Band)	Applications	Number of Bands	Termination	Antenna Type	Gain
Siretta Ltd ALPHA1A/3M/BNCM/S/S/11	Adhesive	Wide Band	2	802.15.4, Bluetooth, Cellular, WiFi	4 mm	0.157 in	1.8 GHz, 1.9 GHz, 2.1 GHz, 2.4 GHz, 868 MHz, 900 MHz, 915 MHz, 950 MHz	Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™	8	BNC Male	Flat Bar	3.8 dBi
Siretta Ltd ALPHA1A/1M/SMAM/S/S/11	Adhesive	Wide Band	2	802.15.4, Bluetooth, Cellular, WiFi	4 mm	0.157 in	1.8 GHz, 1.9 GHz, 2.1 GHz, 2.4 GHz, 868 MHz, 900 MHz, 915 MHz, 950 MHz	Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™	8		Flat Bar	3.8 dBi
Siretta Ltd ALPHA1A/2.5M/SMAM/S/S/11	Adhesive	Wide Band	2	802.15.4, Bluetooth, Cellular, WiFi	4 mm	0.157 in	1.8 GHz, 1.9 GHz, 2.1 GHz, 2.4 GHz, 868 MHz, 900 MHz, 915 MHz, 950 MHz	Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™	8		Flat Bar	3.8 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 19.45

General part information

RF ANTENNA Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ Flat Bar BNC Male Adhesive
