PE45458

Active

Pasternack

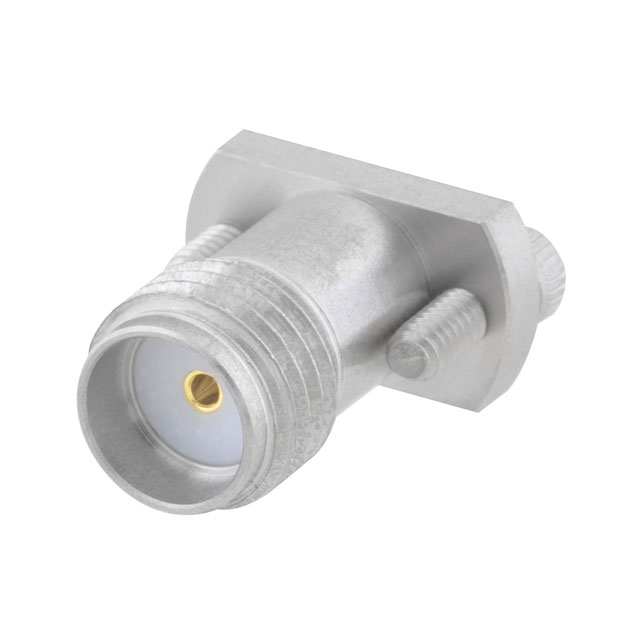

SMA(F) PCB VERT LAUNCH STRPLN

Search across all available documentation for this part.

Active

Pasternack

SMA(F) PCB VERT LAUNCH STRPLN

Technical Specifications

Parameters and characteristics for this part

Specification	PE45458

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Clamp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Screw

Part	Center Contact Material	Mounting Feature	Center Contact Plating	Impedance	Frequency - Max [Max]	Connector Type	Dielectric Material	Number of Ports	Mating Cycles	Features	Contact Termination	Shield Termination	Body Material	Housing Color	Connector Style	Connector Style
Pasternack PE45458	Beryllium Copper	Flange	Gold	50 Ohms	26.5 GHz	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	1	500	Mounting Hardware	Clamp	Screw	Stainless Steel	Silver	SMA
Pasternack PE45451	Beryllium Copper	Flange	Gold	50 Ohms	40 GHz	Female Socket Receptacle	Polyetherimide (PEI)	1	500	Mounting Hardware	Compression	Screw	Stainless Steel	Silver		2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Clamp
