1816166
ActivePhoenix Contact
TERM BLOCK HDR 10POS 90DEG 3.5MM
1816166
ActivePhoenix Contact
TERM BLOCK HDR 10POS 90DEG 3.5MM
Description
General part information
1816166

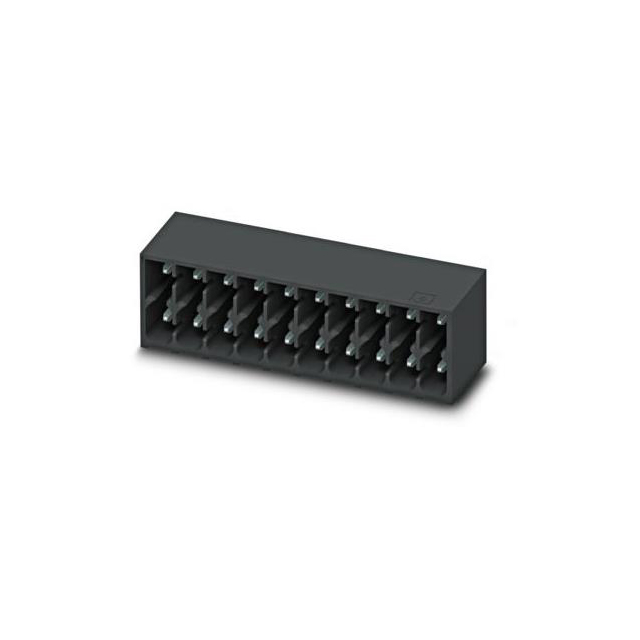

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1816166 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.079 in |
| Current - IEC | 8 A |
| Current - UL | 8 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Housing Material | Liquid Crystal Polymer, LCP |
| Insulation Height | 0.425 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 10 |
| Pitch | 0.138 in |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
| Voltage - UL | 150 V |
