CP30723M440
ActiveCLIFF Electronic Components Ltd
DLSLIM METAL CAT3 RJ11 #4-40
CP30723M440
ActiveCLIFF Electronic Components Ltd
DLSLIM METAL CAT3 RJ11 #4-40
Description
General part information

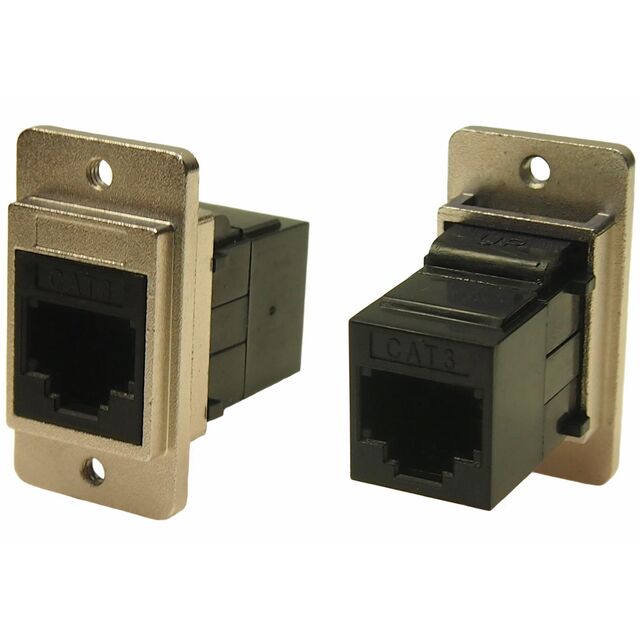

CP30723M440
Modular Coupler Connector Jack, 6p4c (RJ11, RJ14) To Jack, 6p4c (RJ11, RJ14) Cat3 Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | CP30723M440 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | Jack, 6p4c (RJ11, RJ14) |
| Convert To (Adapter End) | Jack, 6p4c (RJ11, RJ14) |
| Housing Material | Acrylonitrile Butadiene Styrene, PC, ABS, Polycarbonate |
| Mounting Feature | Flange |
| Mounting Type | Flange (2 Hole), Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat3 |
| Shielding | Unshielded |
| Type | Coupler |
