Description
General part information

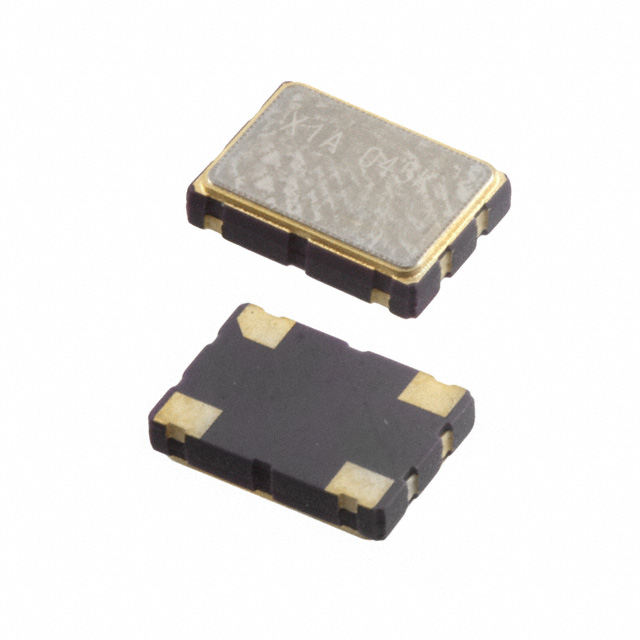

TCO-7087D1A4 29.4912M3
29.4912 MHz XO (Standard) CMOS Oscillator 5V Standby (Power Down) 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TCO-7087D1A4 29.4912M3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 20 mA |
| Frequency | 29.4912 MHz |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.071 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 7 mm |
| Package Name | 4-SMD |
| Package Width | 5 mm |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
