PE44178
ActivePasternack
75 OHM TNC FEMALE CONNECTOR SOLD
PE44178
ActivePasternack
75 OHM TNC FEMALE CONNECTOR SOLD
Description
General part information
PE44178

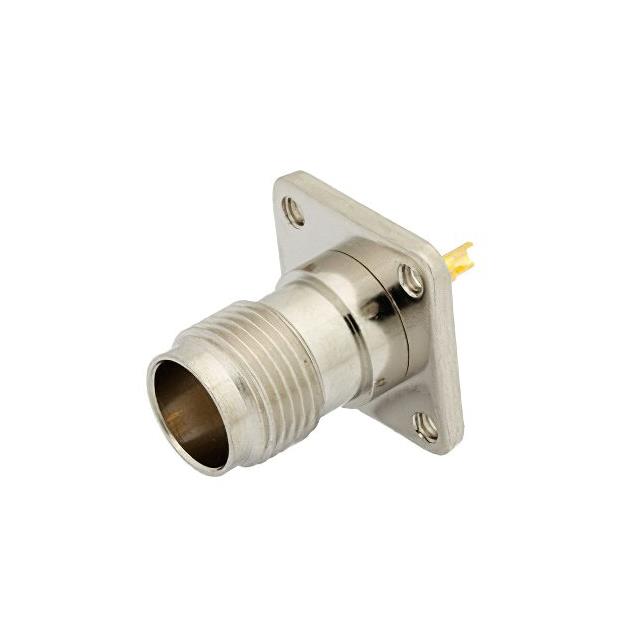

TNC Connector Receptacle, Female Socket 75 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44178 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
