7-2366600-8
ActiveTE Connectivity AMP Connectors

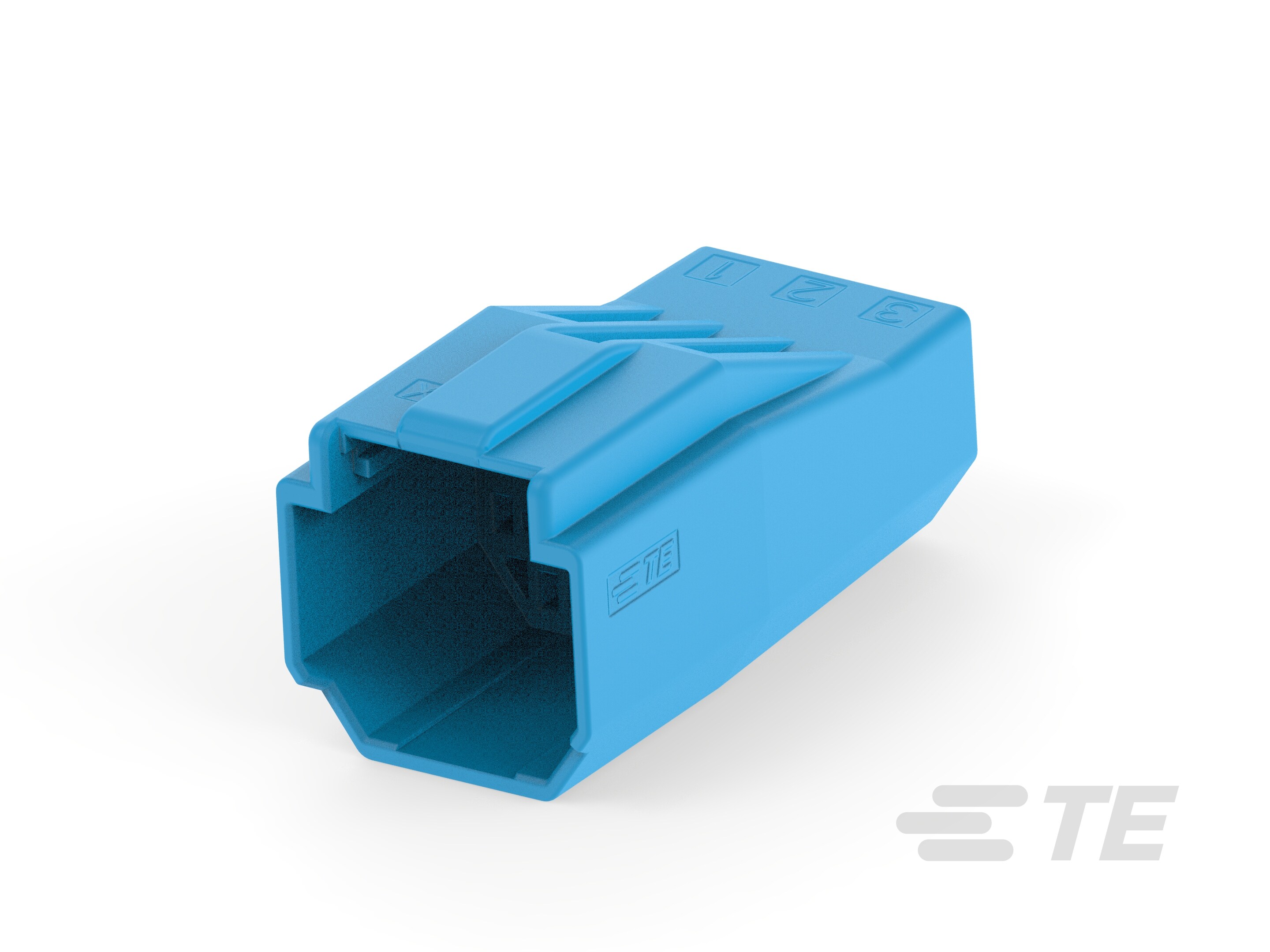

DYNAMIC D1000 SLIM TAB HSG 8P X KEY BL
7-2366600-8
ActiveTE Connectivity AMP Connectors
DYNAMIC D1000 SLIM TAB HSG 8P X KEY BL
Description
General part information
7-2366600-8
Housing, Plug, Wire-to-Wire, 8 Position, 2.7 mm [.106 in] Centerline, Crimp, 3 Row, Blue, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-2366600-8 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Material | Polyester, Thermoplastic, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.106 in |
| Row Spacing | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
