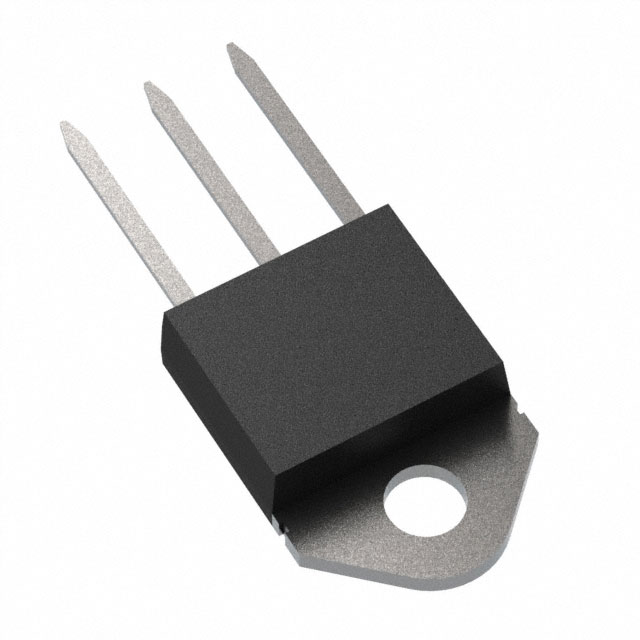

TN6050-12WL
ActiveSTMicroelectronics
SCR 1200V 60A
Deep-Dive with AI
Search across all available documentation for this part.
TN6050-12WL
ActiveSTMicroelectronics
SCR 1200V 60A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TN6050-12WL | TN6050 Series |
|---|---|---|
| - | - | |
| Current - Gate Trigger (Igt) (Max) [Max] | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) | - | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 600 - 660 A |
| Current - Off State (Max) | - | 5 µA |
| Current - On State (It (AV)) (Max) | - | 38 A |
| Current - On State (It (RMS)) (Max) | 60 A | 60 A |
| Grade | - | Automotive |
| Mounting Type | - | Through Hole |
| Operating Temperature | 125 ¯C | 125 ¯C |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | TO-247-3 |
| Qualification | - | AEC-Q101 |
| SCR Type | Standard Recovery | Standard Recovery |
| Supplier Device Package | - | TO-247-3 |
| Voltage - Gate Trigger (Vgt) (Max) | - | 1.3 V |
| Voltage - Off State | 1.2 kV | 1.2 kV |
| Voltage - On State (Vtm) (Max) | - | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TN6050 Series
SCR DIODE 1200V 60A(RMS) 660A AUTOMOTIVE AEC-Q101 3-PIN(3+TAB) TO-247 TUBE
| Part | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Off State (Max) [Max] | Supplier Device Package | Current - Non Rep. Surge 50, 60Hz (Itsm) | Package / Case | Grade | Current - On State (It (AV)) (Max) [Max] | Voltage - Off State | Current - On State (It (RMS)) (Max) | Current - Gate Trigger (Igt) (Max) [Max] | Qualification | Voltage - On State (Vtm) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | SCR Type | Current - Hold (Ih) (Max) [Max] | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TN6050HP-12WY | 1.3 V | 5 µA | TO-247-3 | 600 A, 660 A | TO-247-3 | Automotive | 38 A | 1.2 kV | 60 A | 50 mA | AEC-Q101 | 1.5 V | 150 °C | -40 °C | Standard Recovery | 100 mA | Through Hole | |
STMicroelectronics TN6050HP-12WY | ||||||||||||||||||
STMicroelectronics TN6050HP-12WY | ||||||||||||||||||
STMicroelectronics TN6050HP-12WY | ||||||||||||||||||
STMicroelectronics TN6050-12WL | 1.2 kV | 60 A | 50 mA | Standard Recovery | 125 ¯C |
Description
General part information
TN6050 Series
SCR 1.2 kV 60 A Standard Recovery
