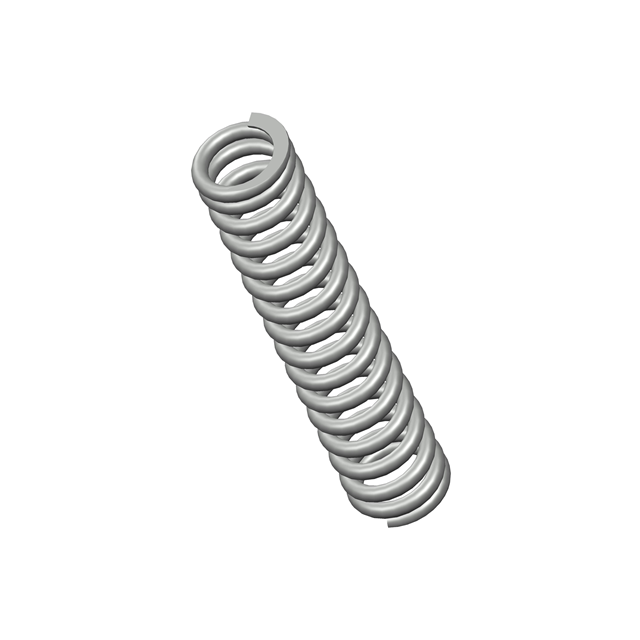

A14-3CS
ActiveCentury Spring Corp
COMP O= .250,L= 1.25,W= .040
A14-3CS
ActiveCentury Spring Corp
COMP O= .250,L= 1.25,W= .040
Description
General part information
A14 Series
COMP O= .250,L= 1.25,W= .040
Technical Specifications
Parameters and characteristics for this part
| Specification | A14-3CS |
|---|---|
| Diameter - Inside | 0.17 in |
| Diameter - Outside | 0.25 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.25 in |
| Material | Spring Steel |
| Rate (lbs/in) | 27 lbs/in |
| Type | Compression |
| Wire Diameter | 0.04 in |
