1087153
ActivePhoenix Contact
FIBER OPTIC CBL M17-M17 MULT 40M
1087153
ActivePhoenix Contact
FIBER OPTIC CBL M17-M17 MULT 40M
Description
General part information
1087153

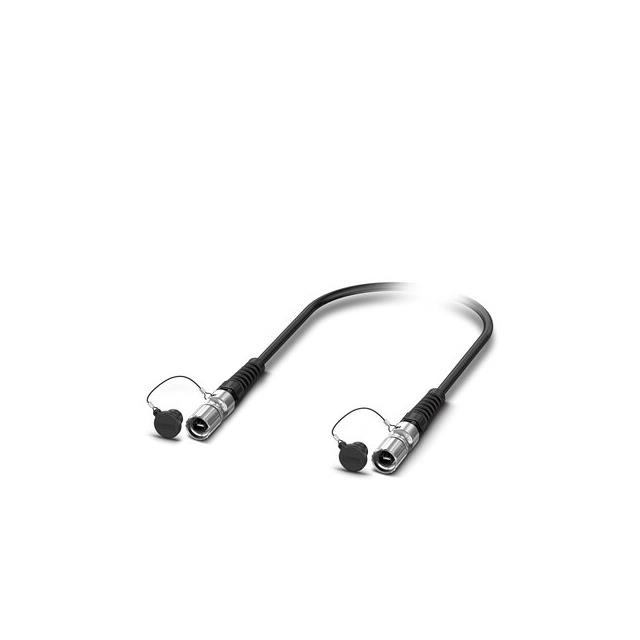

Cable Fiber Optic M17 To M17 62.5/125 131.2' (40.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1087153 |
|---|---|
| 1st Connector | M17 |
| 2nd Connector | M17 |
| Bend Radius | 90 mm |
| Cable Diameter | 0.33 " |
| Color - Cable | Black |
| Color - Connectors | Silver |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 131.2 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | LSZH |
| Type | OM1, Multimode |
