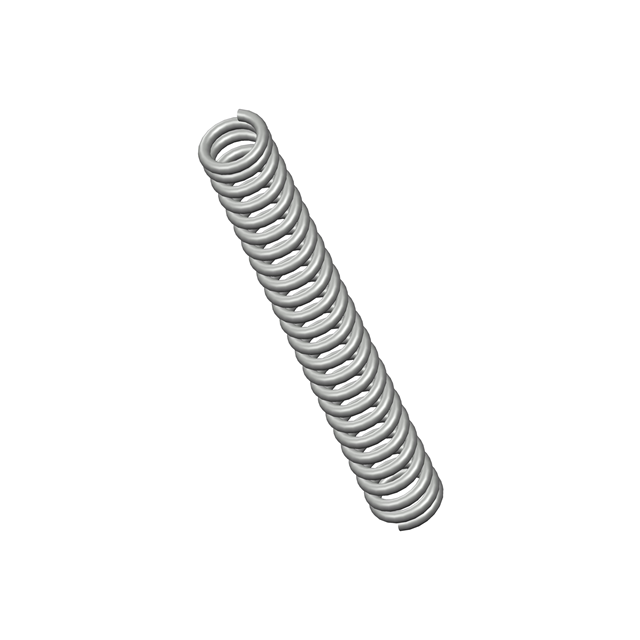

10928CS
ActiveCentury Spring Corp
COMP O= .515,L= 4.00,W= .084
10928CS
ActiveCentury Spring Corp
COMP O= .515,L= 4.00,W= .084
Description
General part information
10928CS
COMP O= .515,L= 4.00,W= .084
Technical Specifications
Parameters and characteristics for this part
| Specification | 10928CS |
|---|---|
| Diameter - Inside | 0.347 in |
| Diameter - Outside | 0.515 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 4 in |
| Material | Spring Steel |
| Rate (lbs/in) | 40 lbs/in |
| Type | Compression |
| Wire Diameter | 0.084 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
