ES205E2BD

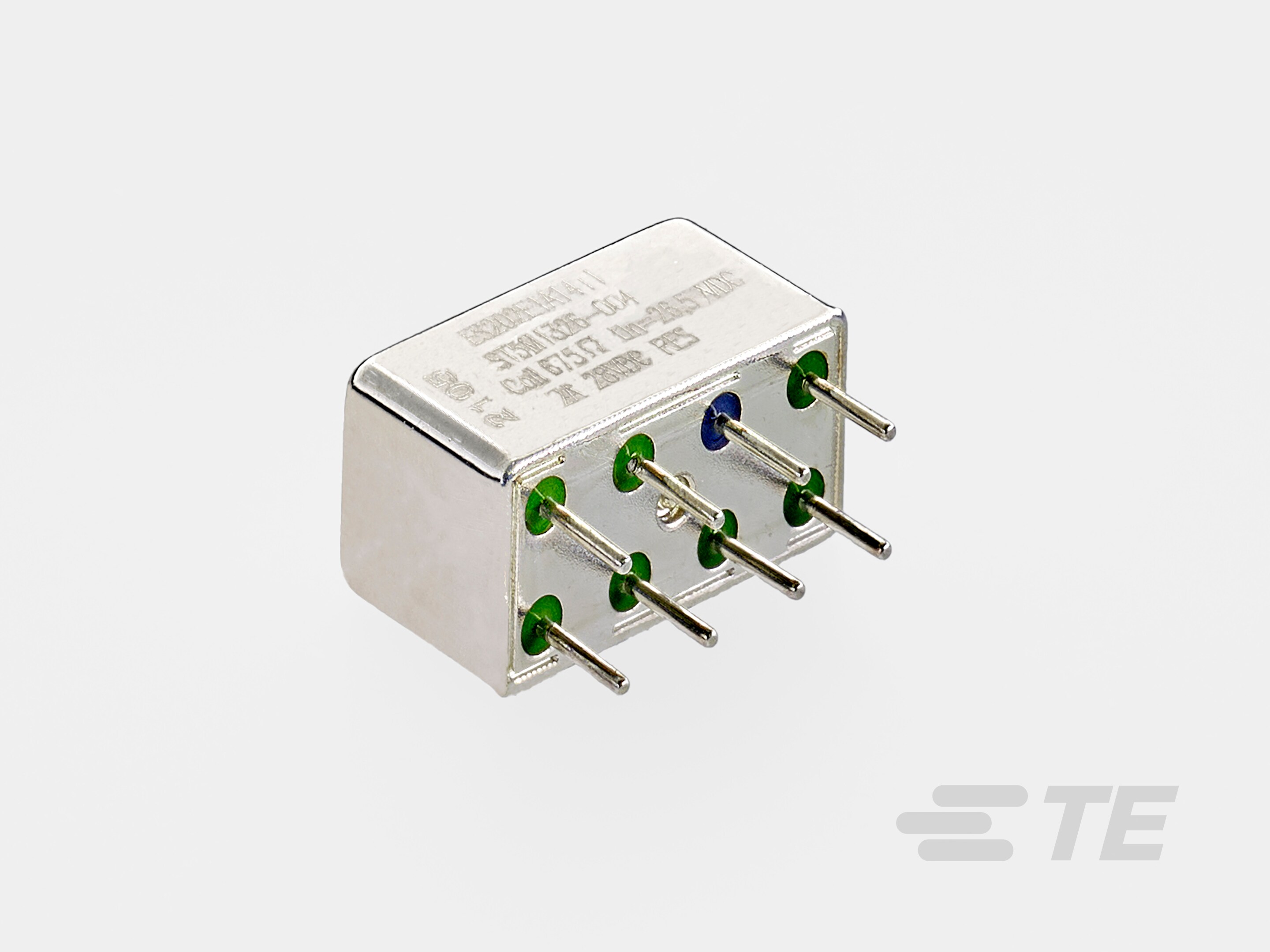

General Purpose Power Relay, DC, 2 Form C DPDT-CO, 5 A Contact Rating, 28 VDC Coil Voltage, Hermetically Sealed, 125 °C [257 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | ES205E2BD |
|---|---|
| Coil Current | 56 mA |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | Form, 2 Form C, C, 2, DPDT |
| Contact Rating (Current) | 5 A |
| Load - Max Switching (Apparent Power) | 1000 VA |
| Load - Max Switching (Real Power) | 140 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 5 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -70 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed, Hermetically |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 28 VDC |
| Termination Style | PC Pin |
