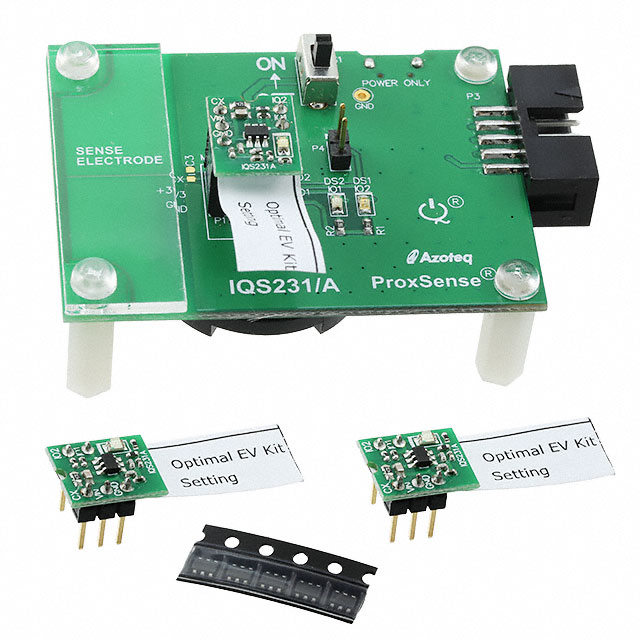

IQS231A EVALUATION KIT 2

Search across all available documentation for this part.

Active

Azoteq (Pty) Ltd

IQS231A EVALUATION KIT 2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IQS231AEV02-S	IQS231 Series

Current - Supply	-	80 µA
Embedded	False	False
Interface	I2C	I2C
LED Driver Channels	-	1
Mounting Type	-	Surface Mount
Number of Inputs	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Package / Case	-	TSOT-23-6, SOT-23-6 Thin, 10-WFDFN Exposed Pad
Proximity Detection	-	True
Resolution	-	8 b
Sensing Range	1 Button/Key	1 Button/Key
Sensor Type	Touch, Capacitive	Touch, Capacitive
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	TSOT-23-6, 10-DFN (3x3)
Utilized IC / Part	IQS231A	IQS231A
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	1.8 V	1.8 V

IQS231A EVALUATION KIT 2

Part	Sensing Range	Sensor Type	Supplied Contents	Interface	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs	LED Driver Channels [Max]	Mounting Type	Resolution	Supplier Device Package	Current - Supply
Azoteq (Pty) Ltd IQS231AEV02-S	1 Button/Key	Touch, Capacitive	Board(s)	I2C	IQS231A	3.3 V	1.8 V
Azoteq (Pty) Ltd IQS231A-00000000-TSR				I2C		3.3 V	1.8 V	SOT-23-6 Thin, TSOT-23-6	85 °C	-20 C	1	1	Surface Mount	8 b	TSOT-23-6	80 µA
Azoteq (Pty) Ltd IQS231A-00000000-DNR				I2C		3.3 V	1.8 V	10-WFDFN Exposed Pad	85 °C	-20 C	1	1	Surface Mount	8 b	10-DFN (3x3)	80 µA
