CP20018P50-20
ActiveAmtery Corporation
0.5 GHZ - 18 GHZ, 20 DB COUPLING
CP20018P50-20
ActiveAmtery Corporation
0.5 GHZ - 18 GHZ, 20 DB COUPLING
Description
General part information
CP20018P50-20

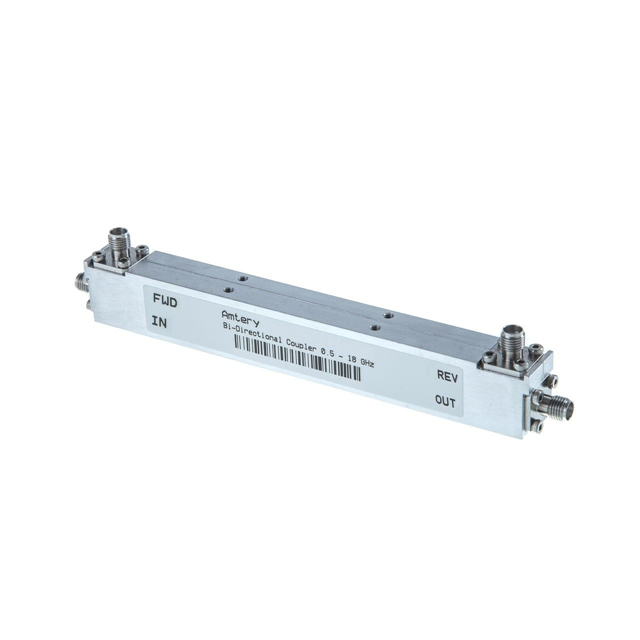

RF Directional Coupler General Purpose 500MHz ~ 18GHz 20dB 50W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | CP20018P50-20 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 500 MHz |
| Insertion Loss | 1.1 dB |
| Isolation | 34 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Max | 50 VA |
| Return Loss | 17 dB |
