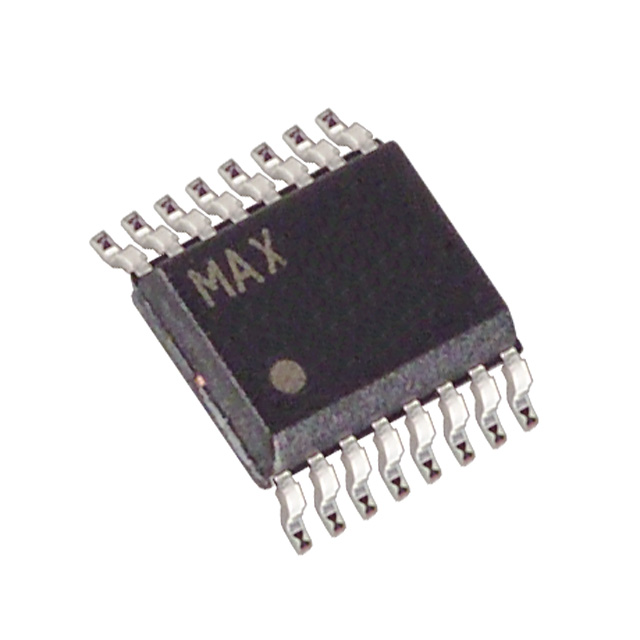

MAX977EEE+
ActiveAnalog Devices Inc./Maxim Integrated
IC COMPARATOR DUAL 16-QSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX977EEE+
ActiveAnalog Devices Inc./Maxim Integrated
IC COMPARATOR DUAL 16-QSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX977EEE+ | MAX977 Series |
|---|---|---|
| CMRR, PSRR (Typ) | - | 82 - 90 dB |
| Current - Input Bias (Max) | - | 0.1 µA |
| Current - Quiescent (Max) | - | 500 µA |
| Hysteresis | - | 4 mV |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Elements | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | TTL, CMOS, Rail-to-Rail |
| Package / Case | - | 0.154 in |
| Package / Case | - | 16-SSOP, 14-SOIC |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Package / Case | - | 3.9 mm |
| Propagation Delay (Max) | - | 820 ns |
| Supplier Device Package | - | 16-QSOP |
| Type | - | General Purpose |
| Voltage - Input Offset (Max) | - | 2 mV |
| Voltage - Supply, Single/Dual (±) | - | 5.25 V |
| Voltage - Supply, Single/Dual (±) | - | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX977 Series
IC COMPARATOR 2 GEN PUR 16QSOP
| Part | Mounting Type | CMRR, PSRR (Typ) | Voltage - Input Offset (Max) | Number of Elements | Package / Case | Package / Case | Package / Case | Hysteresis | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Input Bias (Max) | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Supplier Device Package | Propagation Delay (Max) [Max] | Current - Quiescent (Max) [Max] | Type | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX977EEE | Surface Mount | 82 dB, 90 dB | 2 mV | 2 | 0.154 in | 16-SSOP | 3.9 mm | 4 mV | CMOS, Rail-to-Rail, TTL | 85 °C | -40 °C | 0.1 µA | 5.25 V | 2.7 V | 16-QSOP | 820 ns | 500 µA | General Purpose | ||
Analog Devices Inc./Maxim Integrated MAX977EEE-T | Surface Mount | 82 dB, 90 dB | 2 mV | 2 | 0.154 in | 16-SSOP | 3.9 mm | 4 mV | CMOS, Rail-to-Rail, TTL | 85 °C | -40 °C | 0.1 µA | 5.25 V | 2.7 V | 16-QSOP | 820 ns | 500 µA | General Purpose | ||
Analog Devices Inc./Maxim Integrated MAX977ESD | Surface Mount | 90 dB, 90 dB | 2 mV | 2 | 14-SOIC | 4 mV | CMOS, Rail-to-Rail, TTL | 85 °C | -40 °C | 0.1 µA | 5.25 V | 2.7 V | 820 ns | 500 µA | General Purpose | 0.154 in | 3.9 mm | |||
Analog Devices Inc./Maxim Integrated MAX977ESD+ | Surface Mount | 90 dB, 90 dB | 2 mV | 2 | 14-SOIC | 4 mV | CMOS, Rail-to-Rail, TTL | 85 °C | -40 °C | 0.1 µA | 5.25 V | 2.7 V | 820 ns | 500 µA | General Purpose | 0.154 in | 3.9 mm | |||
Analog Devices Inc./Maxim Integrated MAX977ESD+T | Surface Mount | 90 dB, 90 dB | 2 mV | 2 | 14-SOIC | 4 mV | CMOS, Rail-to-Rail, TTL | 85 °C | -40 °C | 0.1 µA | 5.25 V | 2.7 V | 820 ns | 500 µA | General Purpose | 0.154 in | 3.9 mm | |||
Analog Devices Inc./Maxim Integrated MAX977EEE+ |
Description
General part information
MAX977 Series
Comparator
