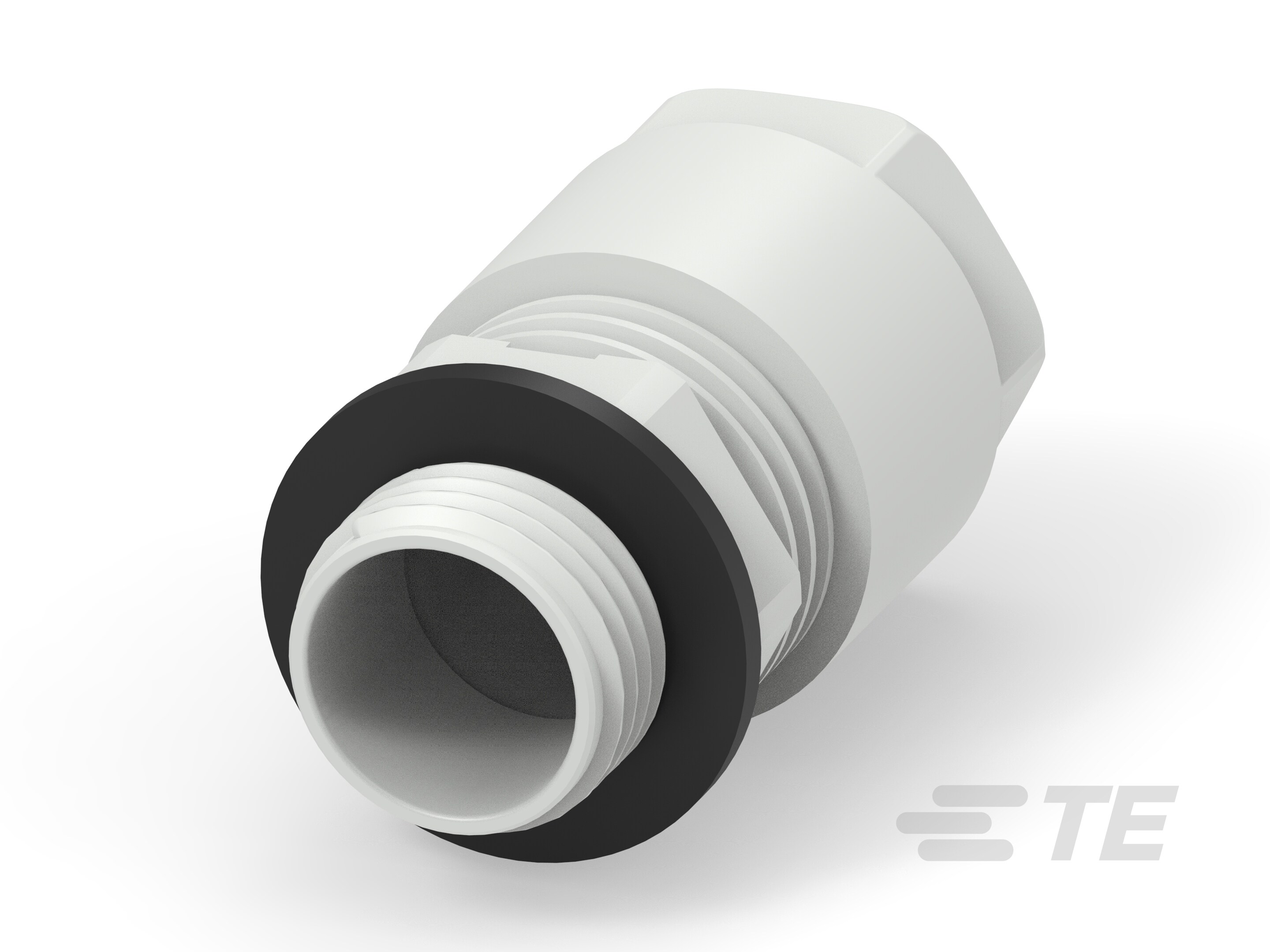

VENT CG,PA6,PG13.5,6-12,9,LGR-1-2490541-7

1-2490541-7

Active
TE Connectivity AMP Connectors

VENT CG,PA6,PG13.5,6-12,9,LGR

Find alt
VENT CG,PA6,PG13.5,6-12,9,LGR-1-2490541-7

1-2490541-7

Active
TE Connectivity AMP Connectors

VENT CG,PA6,PG13.5,6-12,9,LGR

Find alt

Description

General part information

1-2490541-7

Ventilated Cable Gland, PA 6, 6 – 12 mm Clamping Range, Light Gray, IP69

Technical Specifications

Parameters and characteristics for this part

Specification1-2490541-7
ColorGray
Ingress Protection DescriptionWater Resistant, Dust Tight, Waterproof
Ingress Protection IP RatingIP66, IP69, IP68
MaterialPolyamide (PA6), Nylon 6
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Outside Cable Diameter (Max)0.472 in
Outside Cable Diameter (Min)0.236 in
Thread Length0.354 in
Thread SizePG13.5
TypeCable Gland
