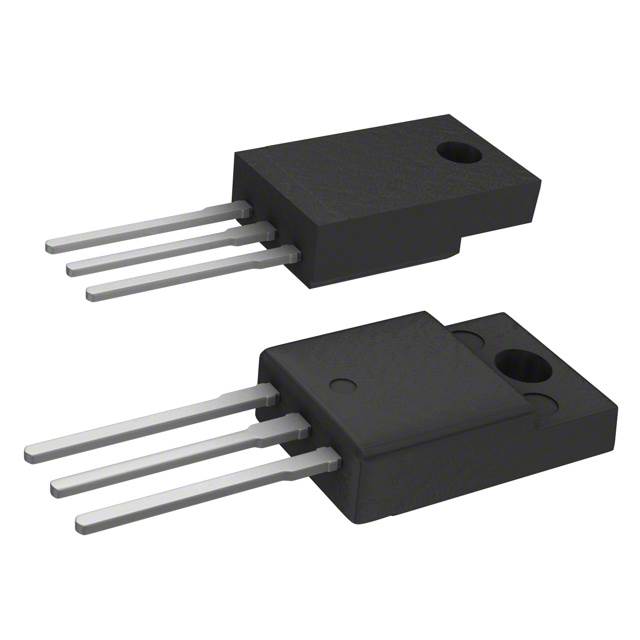

ACST1035-8FP
ActiveTRIAC 800V 10A TO220FPAB
Deep-Dive with AI
Search across all available documentation for this part.
ACST1035-8FP
ActiveTRIAC 800V 10A TO220FPAB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACST1035-8FP | ACST1035 Series |
|---|---|---|
| - | - | |
| Configuration | - | Single |
| Current - Gate Trigger (Igt) (Max) | - | 35 mA |
| Current - Hold (Ih) (Max) | - | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 105 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 100 A |
| Current - On State (It (RMS)) (Max) | - | 10 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 150 °C | 125 - 150 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | TO-220-3 Full Pack | TO-220-3, TO-220-3 Full Pack |
| Supplier Device Package | TO-220FPAB | TO-220, TO-220FPAB |
| Triac Type | Standard | Standard |
| Voltage - Gate Trigger (Vgt) (Max) | - | 1 V |
| Voltage - Off State | - | 700 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 0.73 | |
ACST1035 Series
Overvoltage protected AC switch
| Part | Configuration | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - On State (It (RMS)) (Max) [Max] | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Triac Type | Current - Gate Trigger (Igt) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ACST1035-7T | ||||||||||||||
STMicroelectronics ACST1035-7T | Single | 1 V | 10 A | Through Hole | TO-220 | -40 °C | 125 ¯C | TO-220-3 | Standard | 35 mA | 50 mA | 105 A | 100 A | 700 V |
STMicroelectronics ACST1035-8FP | Through Hole | TO-220FPAB | -40 °C | 150 °C | TO-220-3 Full Pack | Standard | ||||||||
STMicroelectronics ACST1035-7FP | Single | 1 V | 10 A | Through Hole | TO-220FPAB | -40 °C | 125 ¯C | TO-220-3 Full Pack | Standard | 35 mA | 50 mA | 105 A | 100 A | 700 V |
Description
General part information
ACST1035 Series
The ACST10 series belongs to the ACS™/ACST power switch family built with A.S.D.(application specific discrete) technology. This high performance device is suited to home appliances or industrial systems, and drives loads up to 10 A.
This ACST10 switch has a Triac structure and a high voltage clamping device to absorb the inductive turn-off energy and withstand transients such as those described in the IEC 61000-4-5 standard. The ACST1010-7 needs a low gate current to be activated (IGT< 10 mA) and still shows a high noise immunity complying with IEC 61000-4-4 standard. The ACST1035-7 offers a high static dV/dt immunity of 2 kV/μs minimum.
