1460111
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB16 PG21
1460111
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB16 PG21
Description
General part information
1460111

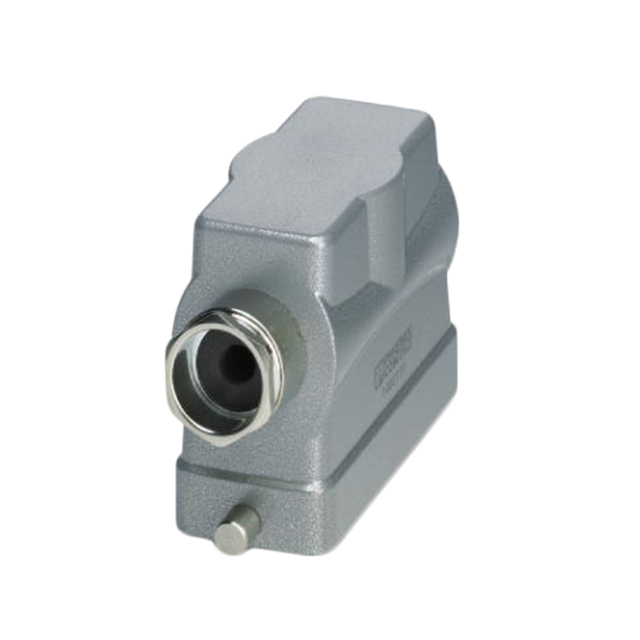

Hood Connector Side Entry PG21 B16
Technical Specifications
Parameters and characteristics for this part
| Specification | 1460111 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B16 |
| Size / Dimension Height | 2.992 in |
| Size / Dimension Length | 3.701 in |
| Size / Dimension Width | 1.693 in |
| Style | Side Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
