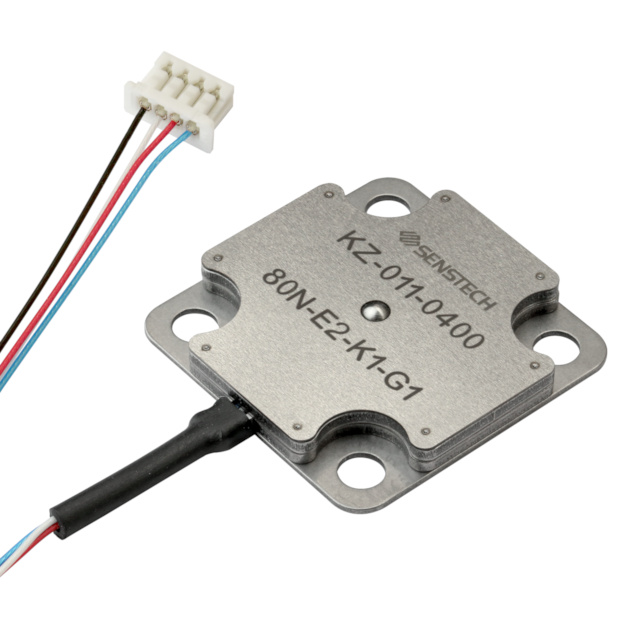

KZ-011-0400-80N-E2-K1-G1
ActiveInnovative Sensor Technology, USA Division
FORCE RANGE: 80 N - APPLICATION
KZ-011-0400-80N-E2-K1-G1
ActiveInnovative Sensor Technology, USA Division
FORCE RANGE: 80 N - APPLICATION
Description
General part information
KZ-011-0400-80N-E2-K1-G1
Force Sensor 8.16kgf (18lbs)
Technical Specifications
Parameters and characteristics for this part
| Specification | KZ-011-0400-80N-E2-K1-G1 |
|---|---|
| Actuator Size | 12 mm |
| Actuator Style | Round |
| Actuator Type | Flat Membrane |
| Includes | Sensor, Resistor |
| Operating Force | 8.16 kgf |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Voltage |
| Voltage - Supply | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
