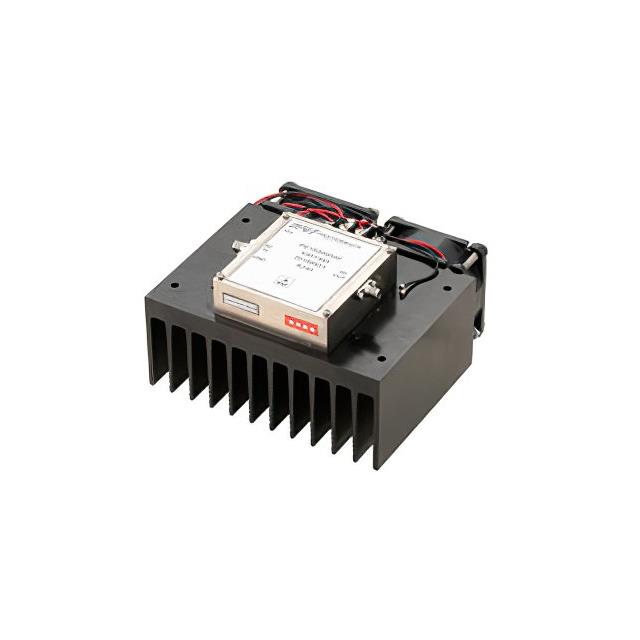

PE15A5054F
ActivePasternack
2 WATT P1DB, 18 GHZ TO 26.5 GHZ,
PE15A5054F
ActivePasternack
2 WATT P1DB, 18 GHZ TO 26.5 GHZ,
Description
General part information
PE15A5054F
RF Amplifier IC Radar 18GHz ~ 26.5GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A5054F |
|---|---|
| Current - Supply | 5.8 A |
| Frequency (Max) | 26.5 GHz |
| Frequency (Min) | 18 GHz |
| Gain | 35 dB |
| Mounting Type | Chassis Mount |
| P1dB | 33 dBm |
| Package / Case | Module |
| RF Type | Radar |
| Voltage - Supply | 12 VDC |
