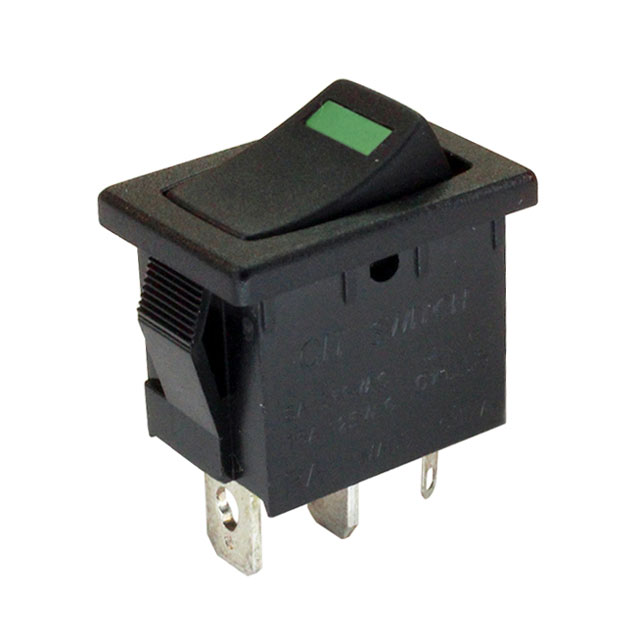

RA1122XCG
ActiveCIT Relay and Switch
SWITCH ROCKER SPST 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RA1122XCG
ActiveCIT Relay and Switch
SWITCH ROCKER SPST 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA1122XCG |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-Off |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.66 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.29 | |||
| 200 | $ 1.18 | |||
| 400 | $ 1.13 | |||
| 600 | $ 1.10 | |||
| 1000 | $ 1.07 | |||
Description
General part information
RA1122XCG
Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In
