TGH-0280-04

Active

t-Global Technology

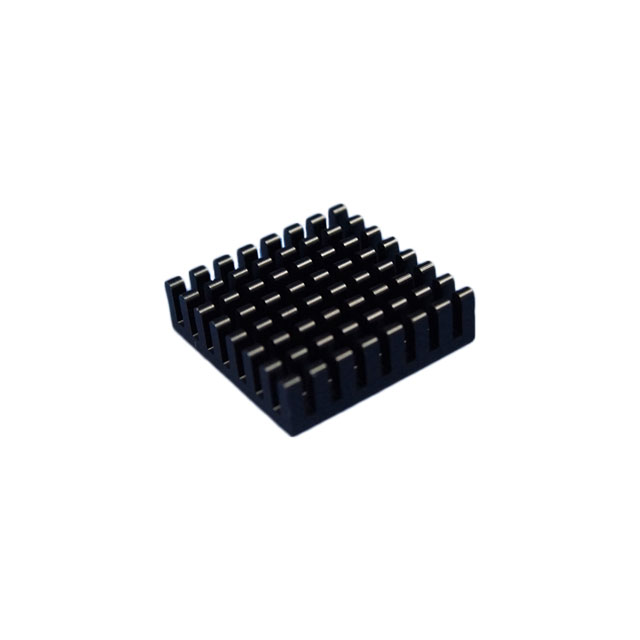

ALUMINIUM HEAT SINK 28X28MM

Search across all available documentation for this part.

Active

t-Global Technology

ALUMINIUM HEAT SINK 28X28MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TGH-0280-04	TGH-0280 Series

Attachment Method	-	Push Pin
Fin Height [z]	0.315 in	0.177 - 0.866 in
Fin Height [z]	8 mm	4.5 - 22 mm
Length	28 mm	28 mm
Length	1.102 in	1.102 in
Length	-	0.787 "
Length	-	20 mm
Material	Aluminum	Aluminum
Material Finish	Black Anodized	Black Anodized
Shape	Square, Pin Fins	Square, Fins, Rectangular, Pin Fins, Pin Fins
Type	Top Mount	Top Mount
Width	28 mm	28 mm
Width [y]	1.102 in	1.102 in

ALUMINIUM HEAT SINK 28X28MM

Part	Material	Shape	Fin Height [z]	Fin Height [z]	Length	Length	Type	Width	Width [y]	Material Finish	Length [x]	Length [x]	Attachment Method
t-Global Technology TGH-0280-08	Aluminum	Fins, Square	0.866 in	22 mm	28 mm	1.102 in	Top Mount	28 mm	1.102 in	Black Anodized
t-Global Technology TGH-0280-01	Aluminum	Rectangular, Pin Fins	0.177 in	4.5 mm			Top Mount	28 mm	1.102 in	Black Anodized	0.787 "	20 mm
t-Global Technology TGH-0280-06	Aluminum	Pin Fins, Square	0.5 in	12.7 mm	28 mm	1.102 in	Top Mount	28 mm	1.102 in	Black Anodized			Push Pin
t-Global Technology TGH-0280-07	Aluminum	Fins, Square			28 mm	1.102 in	Top Mount	28 mm	1.102 in
t-Global Technology TGH-0280-04	Aluminum	Pin Fins, Square	0.315 in	8 mm	28 mm	1.102 in	Top Mount	28 mm	1.102 in	Black Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Aluminum Top Mount
