8461 0601000

Active

Belden Inc.

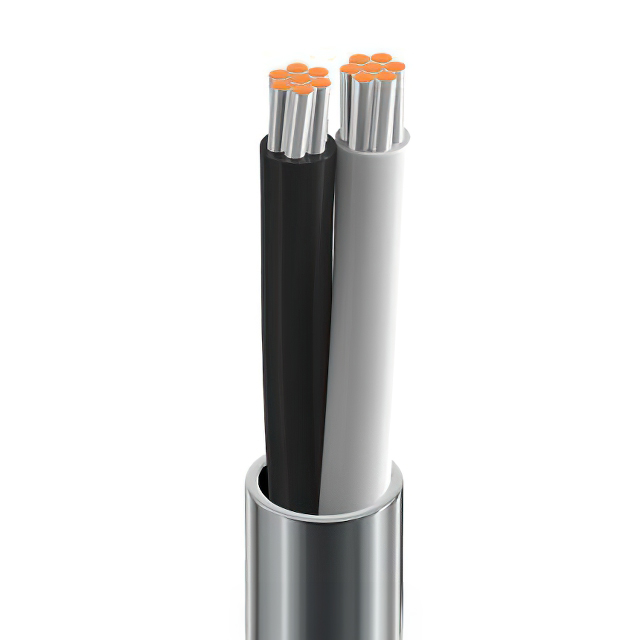

CABLE 2COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8461 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.686 mm
Jacket (Insulation) Thickness	0.027 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length [x]	Length [x]	Conductor Material	Voltage	Usage	Length	Length
Belden Inc. 8461 060U500	2	26 AWG	7	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-20 C	80 C	18 AWG	Poly-Vinyl Chloride (PVC)	Chrome	0.686 mm	0.027 in	Speaker	500 '	152.4 m	Copper Tinned
Belden Inc. 8461 0605000	2	26 AWG	7	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-20 C	80 C	18 AWG	Poly-Vinyl Chloride (PVC)	Chrome	0.686 mm	0.027 in	Multi-Conductor			Copper Tinned	300 V	Audio Control Instrumentation
Belden Inc. 8461 060100	2	26 AWG	7	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-20 C	80 C	18 AWG	Poly-Vinyl Chloride (PVC)	Chrome	0.686 mm	0.027 in	Speaker	100 ft	30.5 m	Copper Tinned
Belden Inc. 8461 060U1000	2	26 AWG	7	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-20 C	80 C	18 AWG	Poly-Vinyl Chloride (PVC)	Chrome	0.686 mm	0.027 in	Multi-Conductor			Copper Tinned	300 V	Audio Control Instrumentation	1000 ft	304.8 m
Belden Inc. 8461 0601000	2	26 AWG	7	Poly-Vinyl Chloride (PVC)	5.94 mm	0.234 "	-20 C	80 C	18 AWG	Poly-Vinyl Chloride (PVC)	Chrome	0.686 mm	0.027 in	Multi-Conductor			Copper Tinned	300 V	Audio Control Instrumentation	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.38

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
