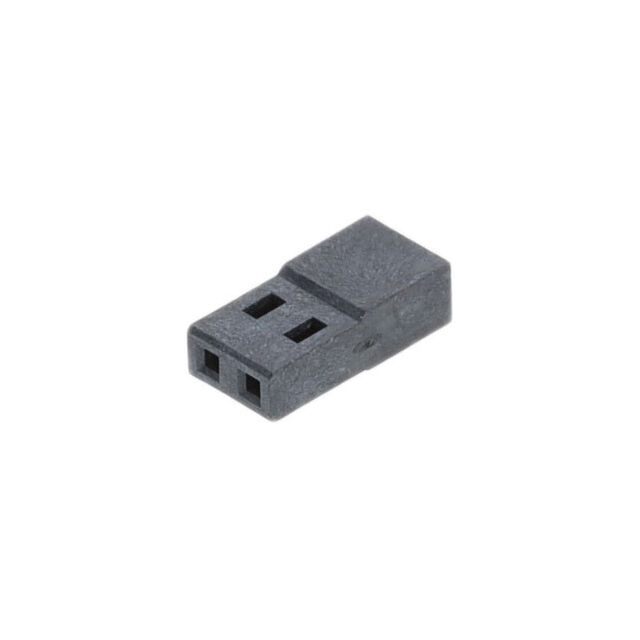

Specification	2316102-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in

2316102 Series

Part	Note	Number of Rows	Color	Connector Type	Contact Type	Insulation Material	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Positions	Pitch	Fastening Type
TE Connectivity AMP Connectors 1-2316102-5	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	15	0.079 in

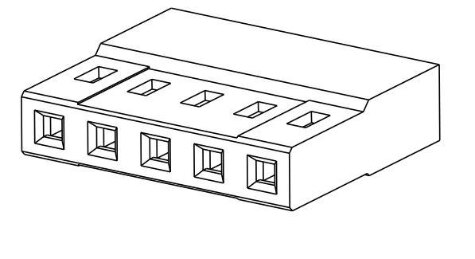

TE Connectivity AMP Connectors 1-2316102-4	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	14	0.079 in
TE Connectivity AMP Connectors 1-2316102-6	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	16	0.079 in
TE Connectivity AMP Connectors 1-2316102-8		1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	18	0.079 in	Push-Pull
TE Connectivity AMP Connectors 1-2316102-3		1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	13	0.079 in	Push-Pull

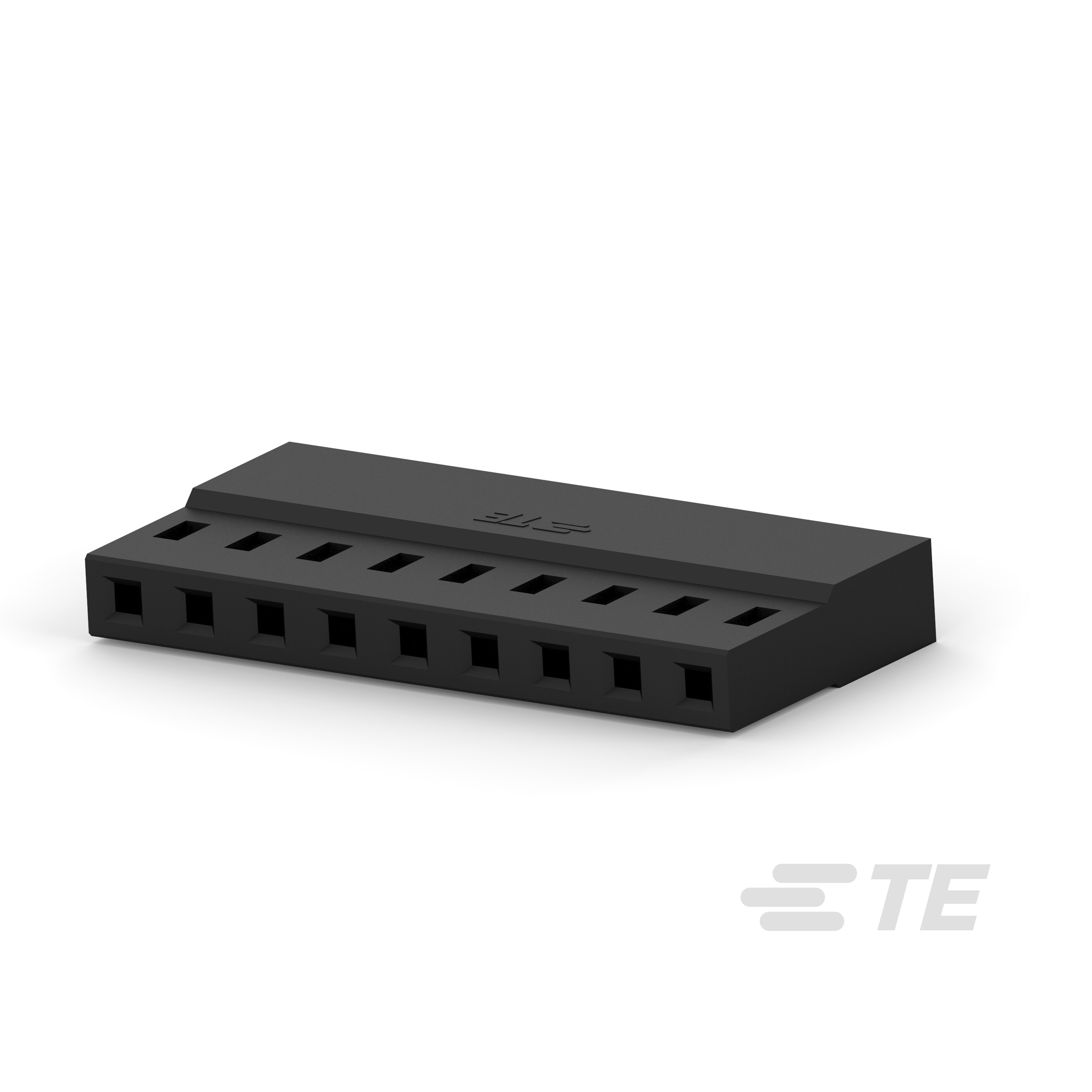

TE Connectivity AMP Connectors 2316102-9		1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	9	0.079 in	Push-Pull

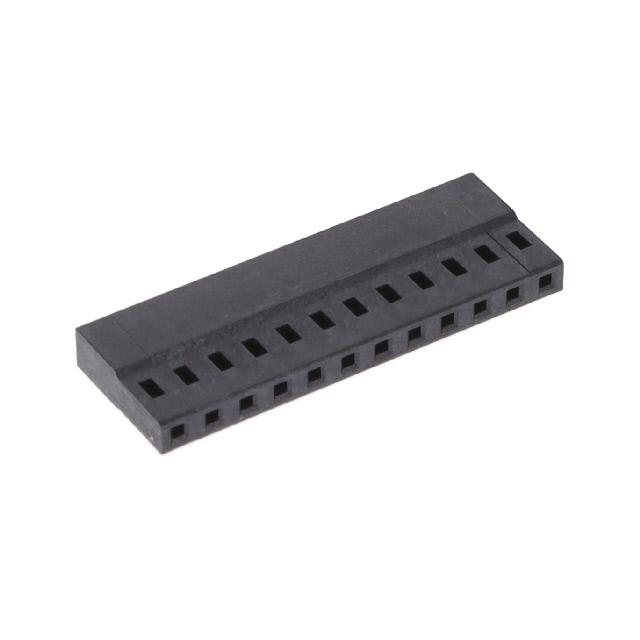

TE Connectivity AMP Connectors 1-2316102-2	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	12	0.079 in
TE Connectivity AMP Connectors 2316102-4	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	4	0.079 in
TE Connectivity AMP Connectors 1-2316102-1		1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	11	0.079 in	Push-Pull
TE Connectivity AMP Connectors 2-2316102-0	Contacts Not Included	1	Black	Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	Crimp	125 °C	-40 °C	Free Hanging (In-Line)	20	0.079 in
