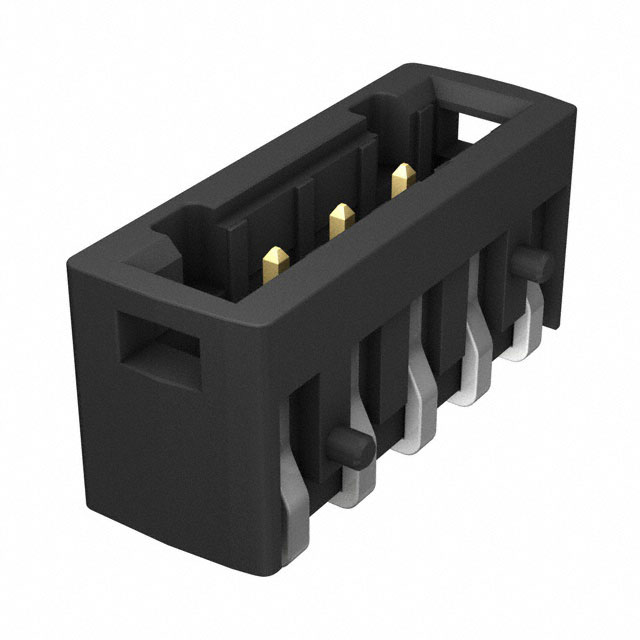

XW4K-03A1-V1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK HDR 3POS VERT 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XW4K-03A1-V1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK HDR 3POS VERT 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XW4K Series

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) Vertical Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XW4K-03A1-V1	XW4K Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	6 A	6 A
Features	Latches, Board Guide	Latches, Board Guide
Header Orientation	Vertical	Vertical, 90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height [z]	7.44 mm	7.44 mm
Insulation Height [z]	0.293 in	0.293 in
Mounting Type	Surface Mount	Surface Mount
Number of Levels	1	1
Number of Positions	-	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Positions Per Level	3	2 - 6
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	160 V	160 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 AWG
Wire Gauge or Range - mm˛ [Max]	0.5 mm˛	0.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛	0.14 mm˛
Wire Gauge or Range - mm²	-	0.14 mm²
Wire Gauge or Range - mm²	-	0.5 mm²
Wire Strip Length	6 mm	6 mm

XW4K Series

TERM BLOCK HDR 4POS VERT 2.54MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Mating Finish	Positions Per Level	Number of Positions	Number of Levels	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Type	Contact Material	Color	Pitch [x]	Pitch [x]	Header Orientation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Wire Strip Length	Mounting Type	Housing Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Omron Electronics Inc-EMC Div XW4K-04A1-V1	7.44 mm	0.293 in	Tin	4	4	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C
Omron Electronics Inc-EMC Div XW4K-03A1-V1	7.44 mm	0.293 in	Tin	3		1	6 A			160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C	0.14 mm˛	0.5 mm˛
Omron Electronics Inc-EMC Div XW4K-06A1-H1	7.44 mm	0.293 in	Tin	6	6	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	90°, Right Angle	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C
Omron Electronics Inc-EMC Div XW4K-05A1-V1	7.44 mm	0.293 in	Tin	5		1	6 A			160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C	0.14 mm˛	0.5 mm˛
Omron Electronics Inc-EMC Div XW4K-02A1-H1	7.44 mm	0.293 in	Tin	2	2	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	90°, Right Angle	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C
