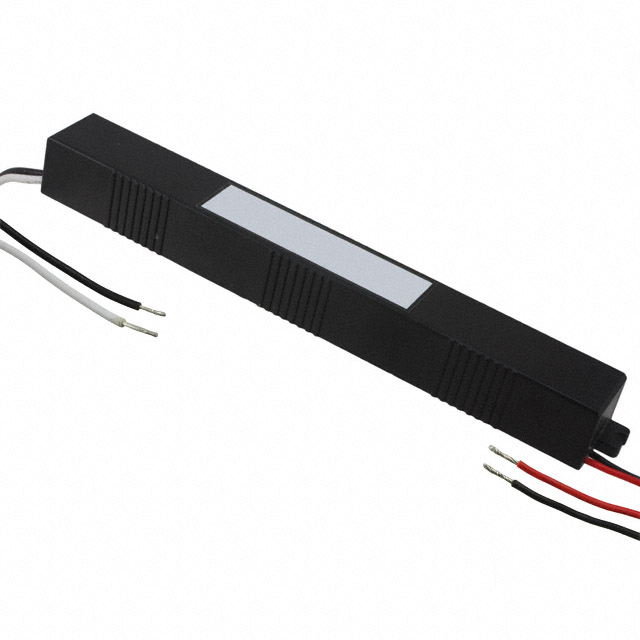

LED17W-24-C0700

Active

Thomas Research Products

LED DRIVER CC AC/DC 12-24V 700MA

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CC AC/DC 12-24V 700MA

Technical Specifications

Parameters and characteristics for this part

LED DRIVER CC AC/DC 12-24V 700MA

Part	Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Weight	Weight	Current - Output (Max) [Max]	Mounting Type	Ratings	Topology	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Termination Style
Thomas Research Products LED17W-24-C0700	Constant Current	1	0.87 in	25 mm	8.43 in	22 mm	0.98 in	214 mm	CE, cULus	128.37 g	0.283 lb	700 mA	Chassis Mount	IP66	AC DC Converter	OCP, OVP, SCP	-30 ░C	60 °C	24 V	12 V	305 VAC	90 VAC	17 W	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 39.06

General part information

700mA 12 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
