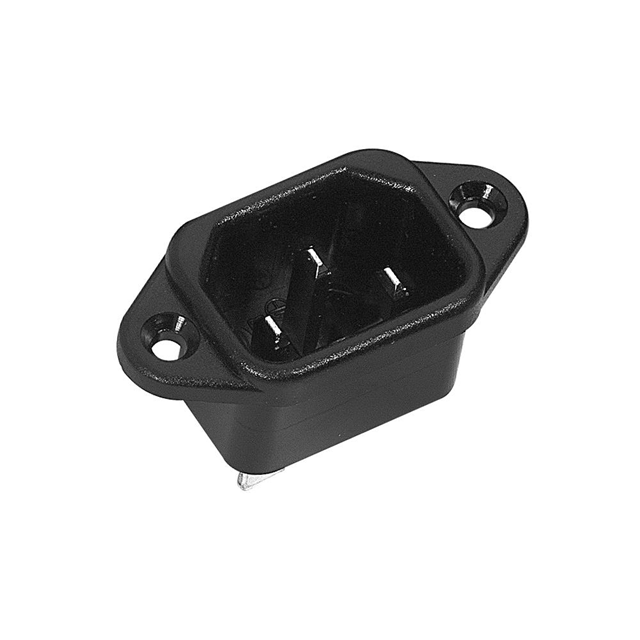

42R02-4212E

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	42R02-4212E	42R02 Series

Accomodates a Fuse	-	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA, cUL
Connector Style	IEC 320-C14	IEC 320-C14, IEC 320-C16
Connector Type	Receptacle, Male Pins	Male Blades, Receptacle, Male Pins, Receptacle, Male Pins - Module, Receptacle, Male Blades - Module, Receptacle, Female Sockets
Filter Type	-	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	20 - 27.5 mm
Panel Cutout Dimensions [y]	20 mm	20 - 27.5 mm
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	0.187 "	0.187 - 0.25 in
Termination	4.7 mm	4.7 - 6.3 mm
Termination	Quick Connect	Quick Connect

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Material Flammability Rating	Connector Style	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Type	Termination	Termination	Termination
Power Dynamics, Inc. 42R02-3212-150	UL94 V-0	IEC 320-C14	Unfiltered - Commercial	0.059 in	1.5 mm	Panel Mount, Snap-In	27.5 mm	20 mm	CSA, UL, VDE	Male Blades, Receptacle	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-4212E	UL94 V-0	IEC 320-C14				Flange, Panel Mount	20 mm	27.5 mm	CSA, UL, VDE	Male Pins, Receptacle	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4122	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4112	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.187 "	4.7 mm	Quick Connect
Power Dynamics, Inc. 42R02-4212	UL94 V-0	IEC 320-C14					20 mm	27.5 mm	cUL, UL, VDE	Receptacle, Male Blades - Module	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-1211	UL94 V-0	IEC 320-C16					20 mm	27.5 mm	CSA, UL, VDE	Receptacle, Male Pins - Module	0.25 in	6.3 mm	Quick Connect
Power Dynamics, Inc. 42R02-1111	UL94 V-0	IEC 320-C16					20 mm	27 mm	CSA, UL, VDE	Receptacle, Female Sockets	0.187 "	4.7 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins IEC 320-C14 Panel Mount, Flange
