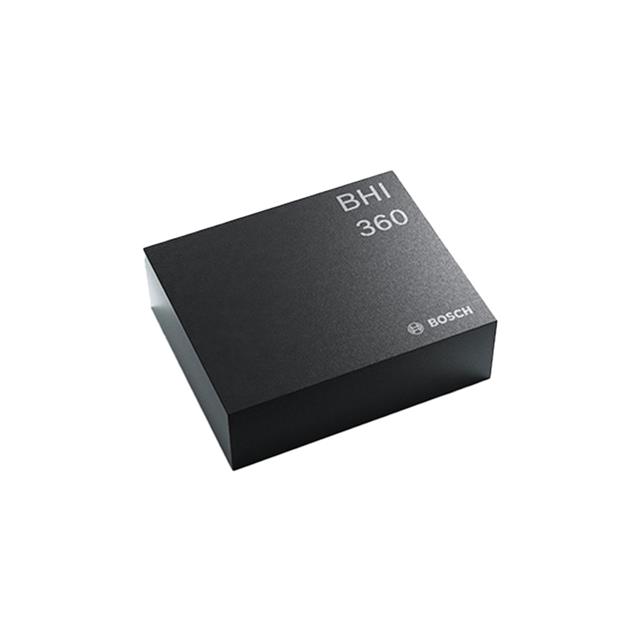

BHI360

Active

Bosch Sensortec

IMU

Search across all available documentation for this part.

Active

Bosch Sensortec

IMU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BHI360	BHI360 Series

Contents	-	Board(s)
Function	-	Air Quality, Accelerometer, Gyroscope, Pressure, Magnetometer, Temperature, Humidity
Interconnect System	-	Shuttle Board 3.0 Socket
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	20-VFLGA	20-VFLGA
Sensor Type	Accelerometer, Gyroscope, 6 Axis	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	20-LGA (2.5x3)	20-LGA (2.5x3)
Type	-	Sensor
Utilized IC / Part	-	BMP580, BMM350, BME688, BHI360, BMM150

SHUTTLE BOARD 3.0 BHI360

Part	Type	Interconnect System	Contents	Utilized IC / Part	Function	Package / Case	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Mounting Type
Bosch Sensortec SHUTTLE BOARD 3.0 BHI360	Sensor	Shuttle Board 3.0 Socket	Board(s)	BHI360, BME688, BMM150, BMM350, BMP580	Accelerometer, Air Quality, Gyroscope, Humidity, Magnetometer, Pressure, Temperature
Bosch Sensortec BHI360						20-VFLGA	I2C, SPI	20-LGA (2.5x3)	85 °C	-40 °C	6 Axis, Accelerometer, Gyroscope	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Accelerometer, Gyroscope, 6 Axis Sensor I2C, SPI Output
