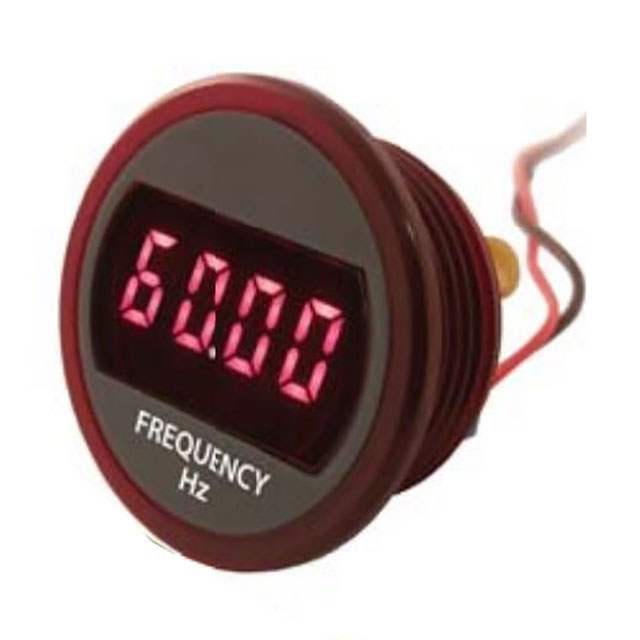

DMR20-1-FM-R-C

Active

Murata Power Solutions Inc.

FREQ METER 85-264VAC LED PNL MT

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

FREQ METER 85-264VAC LED PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	DMR20-1-FM-R-C

Display Characters - Height	7.62 mm
Display Characters - Height	0.3 in
Display Type	LED - Red Characters
Ingress Protection	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	264 VAC
Measuring Range [Min]	85 VAC
Measuring Type	Frequency
Number of Characters Per Row	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30 mm
Termination Style	Screw Terminal
Type	Frequency Meter
Voltage - Supply	Loop Power
Weight	0.056 lb
Weight	25.4 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

FREQ METER 85-264VAC LED PNL MT

Part	Weight	Weight	Type	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Measuring Type	Ingress Protection	Termination Style	Number of Characters Per Row	Display Type	Measuring Range [Max]	Measuring Range [Min]
Murata Power Solutions Inc. DMR20-1-FM-R-C	0.056 lb	25.4 g	Frequency Meter	7.62 mm	0.3 in	30 mm	-25 °C	60 °C	Loop Power	Frequency	IP67 - Dust Tight, Waterproof	Screw Terminal	4	LED - Red Characters	264 VAC	85 VAC

General part information

Frequency Meter LED - Red Characters Display Panel Mount
