VLM-635-31 LPA

Active

Quarton Inc.

TTL LASER MODULE, 635 NM, CLASS

Search across all available documentation for this part.

Active

Quarton Inc.

TTL LASER MODULE, 635 NM, CLASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

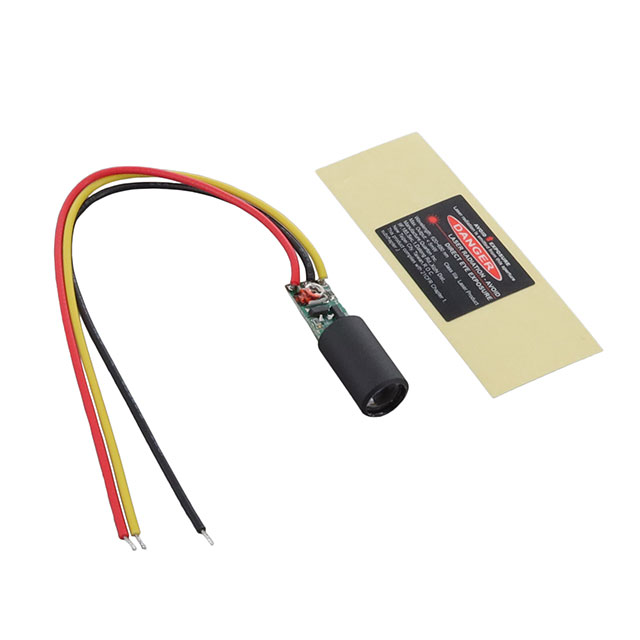

Laser Diode 635nm 4mW 3V ~ 6V 60mA Cylinder (8.0mm Dia)

Technical documentation and resources

Part	Package / Case	Package / Case [diameter]	Voltage - Input [Min]	Voltage - Input [Max]	Wavelength	Current Rating (Amps)	Power (Watts)
Quarton Inc. VLM-635-01G LPT	Cylinder	10.5 mm	2.6 V	5 V	635 nm	50 mA	1 mW
Quarton Inc. VLM-635-04 SPA	Cylinder	6.55 mm	2.6 V	6 V	635 nm	50 mA
Quarton Inc. VLM-635-63 LPO-100	Cylinder	10.6 mm	3 V	6 V	635 nm	40 mA	0.39 mW
Quarton Inc. VLM-635-02 LPA	Cylinder	10.5 mm	2.6 V	5 V	635 nm	40 mA	3 mW
Quarton Inc. VLM-635-31 LPA	Cylinder	8 mm	3 V	6 V	635 nm	60 mA	4 mW
Quarton Inc. VLM-635-02G LPA	Cylinder	10.5 mm	2.6 V	5 V	635 nm	50 mA
Quarton Inc. VLM-635-11 LPT	Cylinder	10.5 mm	2.6 V	5 V	635 nm	50 mA	1 mW
Quarton Inc. VLM-635-03 LPA	Cylinder	7 mm	2.6 V	5 V	635 nm	50 mA
Quarton Inc. VLM-635-04 LPA	Cylinder	6.55 mm	2.6 V	6 V	635 nm	50 mA
Quarton Inc. VLM-635-01 LPT	Cylinder	10.4 mm	2.6 V	5 V	635 nm	50 mA	1 mW
