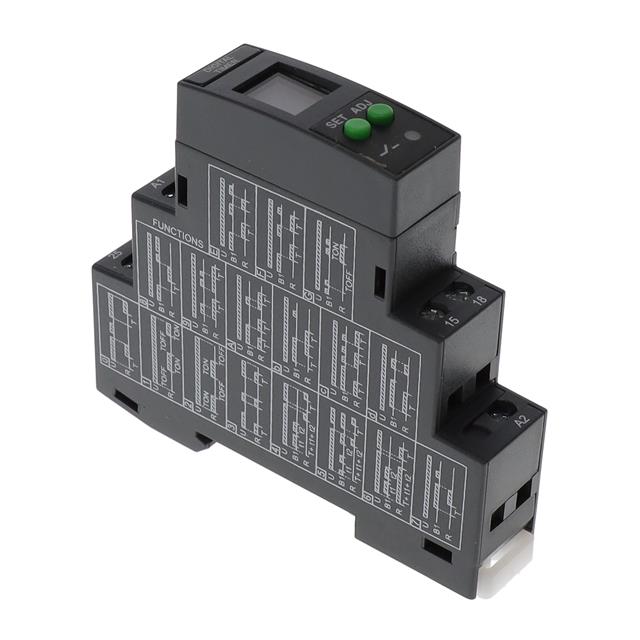

AMT12-D2

Active

Altech Corporation

RELAY TIME DELAY 999HR 8A 240V

Search across all available documentation for this part.

Active

Altech Corporation

RELAY TIME DELAY 999HR 8A 240V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMT12-D2	AMT12 Series

Circuit	DPST-NO (2 Form A)	DPST-NO (2 Form A)
Contact Rating @ Voltage	8 A	8 A
Delay Time [Max]	999 Hrs	999 Hrs
Delay Time [Min]	0.1 Sec	0.1 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys	Up/Down Digit Keys
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply [Max]	265 VAC	265 VAC
Voltage - Supply [Min]	24 VAC	24 VAC

RELAY TIME DELAY 999HR 8A 240V

Part	Mounting Type	Timing Initiate Method	Timing Adjustment Method	Termination Style	Relay Type	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage	Circuit	Voltage - Supply [Min]	Voltage - Supply [Max]	Function
Altech Corporation AMT12-D2	DIN Rail	Input Voltage	Up/Down Digit Keys	Screw Terminal	Mechanical Relay	999 Hrs	0.1 Sec	8 A	DPST-NO (2 Form A)	24 VAC	265 VAC	Programmable (Multi-Function)
Altech Corporation AMT12-S1	DIN Rail	Input Voltage	Up/Down Digit Keys	Screw Terminal	Mechanical Relay	999 Hrs	0.1 Sec	8 A		24 VAC	265 VAC	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay DPST-NO (2 Form A) 0.1 Sec ~ 999 Hrs Delay 8A @ 240VAC DIN Rail

Technical documentation and resources
