HPC 5040NV-100M

Active

TAI-TECH Advanced Electronics Co., Ltd.

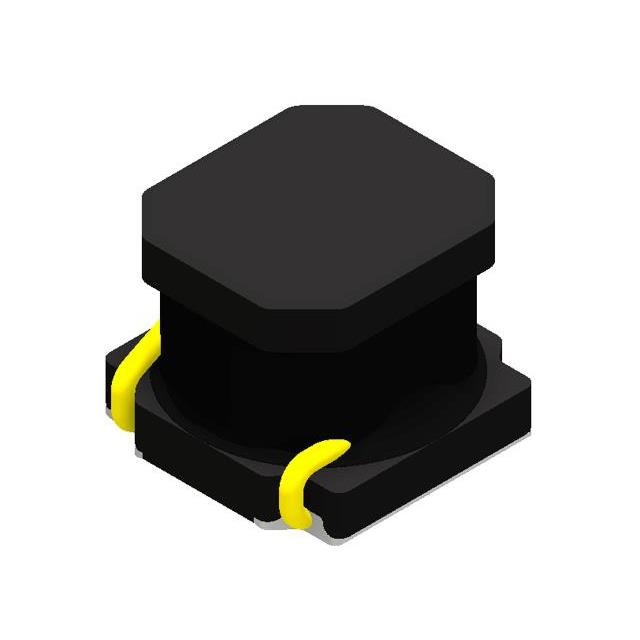

FIXED IND 10UH 2.2A 0.056OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPC 5040NV-100M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 10UH 2.2A 0.056OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 0.10

Description

General part information

HPC 5040NV Series

10 µH Shielded Wirewound Inductor 2.2 A 56mOhm Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPC 5040NV-100M	HPC 5040NV Series

Current - Saturation (Isat)	2.52 A	1.62 - 750 A
Current Rating (Amps)	2.2 A	0.72 - 5 A
DC Resistance (DCR)	56 mOhm	12 - 560 mOhm
Height - Seated (Max)	-	0.157 in
Height - Seated (Max)	-	4 mm
Height - Seated (Max) [Max] [z]	4.1 mm	4.1 mm
Height - Seated (Max) [Max] [z]	0.161 "	0.161 "
Inductance	10 µH	1 - 100 µH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	4.95 mm	4.95 mm
Size / Dimension [x]	0.195 "	0.195 "
Size / Dimension [y]	0.195 in	0.195 in
Size / Dimension [y]	4.95 mm	4.95 mm
Supplier Device Package	5040	5040
Tolerance	20 %	20 %
Type	Wirewound	Wirewound

HPC 5040NV Series

FIXED IND 6.8UH 2.5A 0.043OHM SM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Package / Case	Material - Core	Shielding	Inductance Frequency - Test	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Type	Tolerance	Inductance	DC Resistance (DCR)	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-6R8M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	2.5 A	Wirewound	20 %	6.8 µH	43 mOhm	3.3 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-100M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	2.2 A	Wirewound	20 %	10 µH	56 mOhm	2.52 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-101M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200			0.72 A	Wirewound	20 %	100 µH	560 mOhm	750 mA	0.157 in	4 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-2R2M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	3.8 A	Wirewound	20 %	2.2 µH	21 mOhm	5.7 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-1R0M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	5 A	Wirewound	20 %	1 µH	12 mOhm	7.5 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-4R7M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	3.2 A	Wirewound	20 %	4.7 ÁH	32 mOhm	3.9 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-220M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200			1.5 A	Wirewound	20 %	22 µH	123 mOhm	1.62 A	0.157 in	4 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 5040NV-3R3M	-55 °C	125 °C	5040	0.195 in	4.95 mm	4.95 mm	0.195 "	Surface Mount	Nonstandard	Ferrite	Shielded	100 kHz	AEC-Q200	4.1 mm	0.161 "	3.5 A	Wirewound	20 %	3.3 µH	24 mOhm	4.4 A
