SSL-LX2579IGW

Active

Lumex Opto/Components Inc.

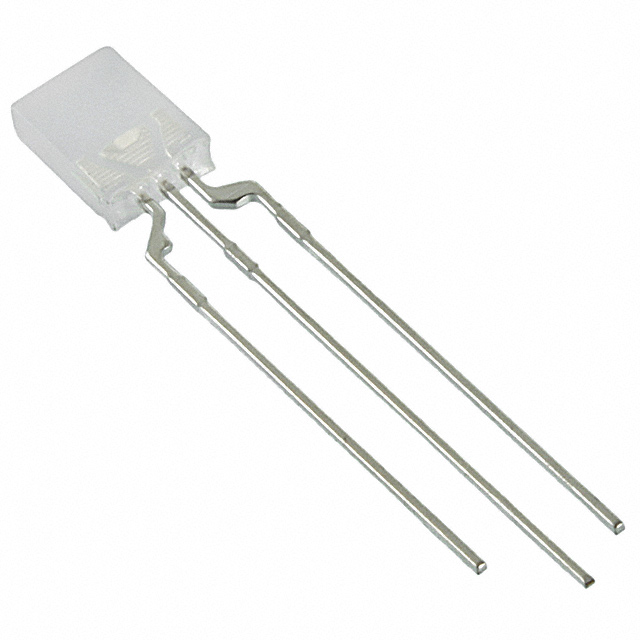

LED GRN/RED DIFF RECT 2X5MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFF RECT 2X5MM T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.1V Green, 2.1V Red Radial - 3 Leads

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED GRN/RED DIFF RECT 2X5MM T/H

Part	Color	Viewing Angle	Wavelength - Peak	Lens Style	Supplier Device Package	Current - Test	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Lens Transparency	Lens Color	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Size [y]	Lens Size [x]	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX2579GIW	Green, Red	110 °	565 nm, 635 nm	Rectangle with Flat Top	Rectangular 2mmx5mm	20 mA, 20 mA	Common Cathode	8 mcd	14 mcd	Through Hole	Diffused	White	10.5 mm	2.1 V, 2.1 V	Radial - 3 Leads	2 mm	5 mm
Lumex Opto/Components Inc. SSL-LX2579IGW	Green, Red	110 °	565 nm, 635 nm	Rectangle with Flat Top	Rectangular 2mmx5mm	20 mA, 20 mA	Common Cathode	8 mcd	14 mcd	Through Hole	Diffused	White	10.5 mm	2.1 V, 2.1 V	Radial - 3 Leads	2 mm	5 mm
Lumex Opto/Components Inc. SSL-LX2579IGW-CA	Green, Red	110 °	565 nm, 635 nm	Rectangle with Flat Top	Rectangular 2mmx5mm	20 mA, 20 mA	Common Anode			Through Hole	Diffused	White	10.5 mm	2.1 V, 2.1 V	Radial - 3 Leads	2 mm	5 mm	3 mcd, 3 mcd
Lumex Opto/Components Inc. SSL-LX2579YGW
