FFF.0S.302.CLAC27Z

Active

LEMO

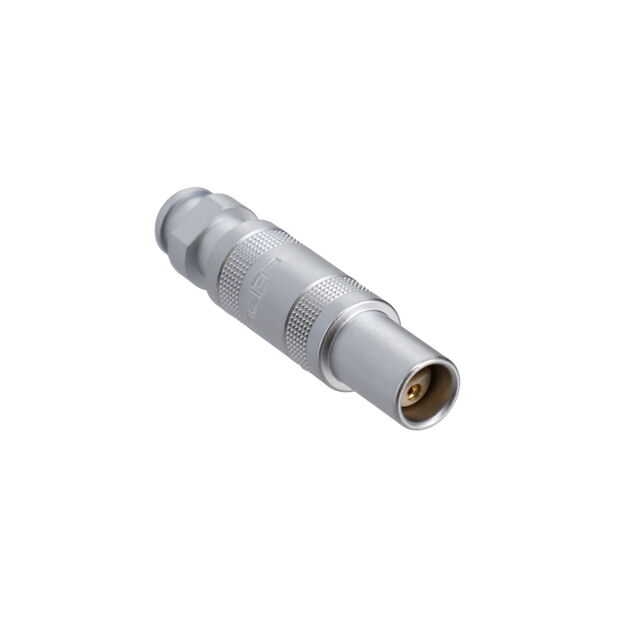

CONN CIRC PLUG 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN CIRC PLUG 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFF.0S.302.CLAC27Z	FFF.0S Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Color	Silver	Silver
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Current Rating (Amps)	10 A	10 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302
Shielding	Shielded	Shielded

CONN CIRC PLUG 2P GOLD SLDR CUP

Part	Material Flammability Rating	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Shell Size - Insert	Primary Material	Features	Shell Finish	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Backshell Material, Plating	Ingress Protection	Contact Material	Insert Material	Contact Finish - Mating	Fastening Type	Shielding	Number of Positions	Orientation
LEMO FFF.0S.302.CLAC42	UL94 V-0	Free Hanging (In-Line)	0.126 in	4.2 mm	0.165 in	3.2 mm	Brass	302	Metal	Backshell	Chrome	Silver	10 A	-55 °C	250 °C	Female Sockets, Male Pins, Plug	Brass, Chrome	IP50	Brass, Bronze	Polyetheretherketone (PEEK)	Gold	Push-Pull	Shielded	2	Keyed
LEMO FFF.0S.302.CLAC27Z	UL94 V-0	Free Hanging (In-Line)					Brass	302	Metal	Backshell	Chrome	Silver	10 A	-55 °C	250 °C	Female Sockets, Male Pins, Plug	Brass, Chrome	IP50	Brass, Bronze	Polyetheretherketone (PEEK)	Gold	Push-Pull	Shielded	2	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
