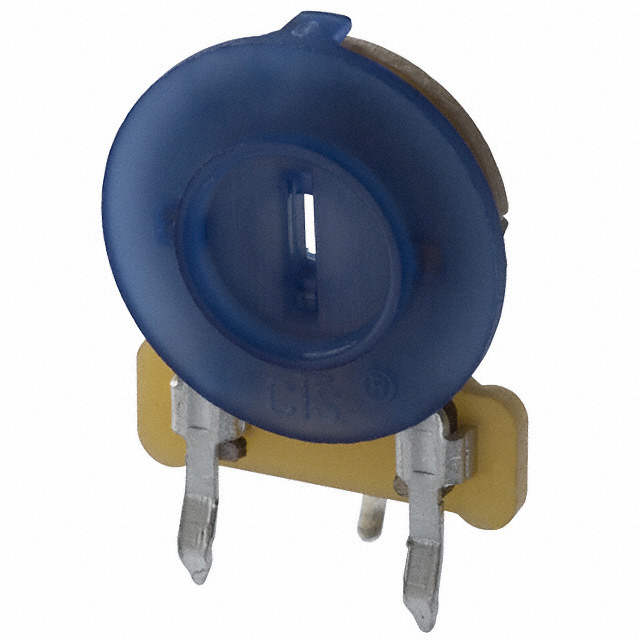

201XR253B
ObsoleteCTS Electrocomponents
TRIMMER 25K OHM 0.2W PC PIN SIDE
201XR253B
ObsoleteCTS Electrocomponents
TRIMMER 25K OHM 0.2W PC PIN SIDE
Description
General part information
201XR253B
25 kOhms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 201XR253B |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 0.2 W |
| Power (Watts) Options | 1/5W |
| Resistance | 25 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.734 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.594 in |
| Termination Style | PC Pins |
| Tolerance | 20 % |
