PSA.00.250.CTLC27
ActiveLEMO

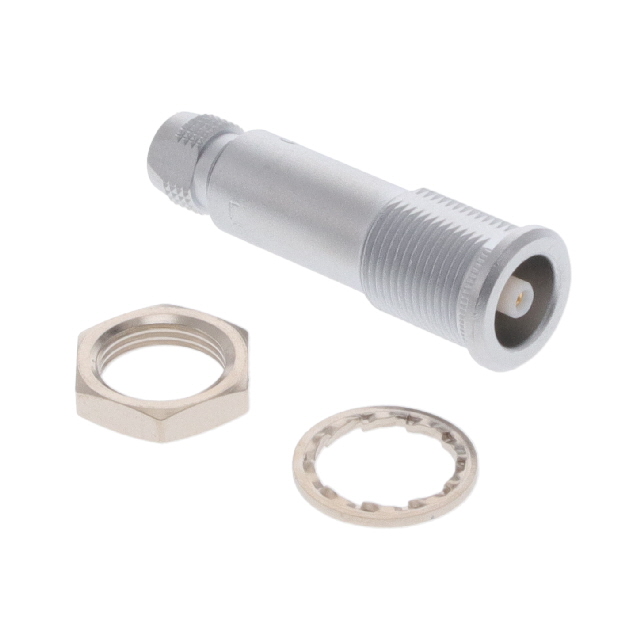

CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
PSA.00.250.CTLC27
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PSA.00.250.CTLC27 | PSA.00.250 Series |
|---|---|---|
| Body Finish | Chrome | Chrome, Nickel |
| Body Material | Brass | Brass |
| Cable Group | RG-174, 179B, 316, 187A, 188A | RG-178B, 196A, RG-174A, RG-174, 179B, 316, 187A, 188A, RG-316 |
| Center Contact Material | Bronze | Bronze, Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket, Male Pin |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 5000 | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 260 ░C | 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Clamp | Clamp |
| Voltage Rating | 700 VDC | 700 VDC |
PSA.00.250 Series
1 BOARD-END 50Ω COAXIAL CONNECTORS (RF) ROHS
| Part | Mounting Feature | Ingress Protection | Body Finish | Center Contact Material | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Fastening Type | Voltage Rating | Connector Type | Includes | Impedance | Center Contact Plating | Housing Color | Number of Ports | Mating Cycles | Shield Termination | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bulkhead - Rear Side Nut | IP50 | Chrome | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 1 | 5000 | Clamp | Solder | ||
Bulkhead - Rear Side Nut | IP50 | Nickel | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 5000 | Clamp | Solder | 196A, RG-178B | ||
LEMO PSA.00.250.ZTL | Bulkhead - Rear Side Nut | IP50 | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | 1 | 5000 | Solder | |||||
Bulkhead - Rear Side Nut | IP50 | Chrome | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 1 | 5000 | Clamp | Solder | RG-174A | |
Bulkhead - Rear Side Nut | IP50 | Nickel | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 5000 | Clamp | Solder | RG-174A | ||
Bulkhead - Rear Side Nut | IP50 | Chrome | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 1 | 5000 | Clamp | Solder | 179B, 187A, 188A, 316, RG-174 | |
Bulkhead - Rear Side Nut | IP50 | Chrome | Brass | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Male Pin, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 5000 | Clamp | Solder | 196A, RG-178B | ||
Bulkhead - Rear Side Nut | IP50 | Nickel | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 5000 | Clamp | Solder | 179B, 187A, 188A, 316, RG-174 | ||
Bulkhead - Rear Side Nut | IP50 | Chrome | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 1 | 5000 | Clamp | Solder | RG-316 | |
Bulkhead - Rear Side Nut | IP50 | Chrome | Bronze | NIM-CAMAC CD/N 549 | -55 °C | 260 ░C | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | 700 VDC | Female Socket, Receptacle | 1 Connector, 1 Lockwasher, 1 Nut | 50 Ohms | Gold | Silver | 1 | 5000 | Clamp | Solder | 196A, RG-178B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.91 | |
| 10 | $ 16.56 | |||
| 25 | $ 15.84 | |||
| 50 | $ 15.33 | |||
| 100 | $ 14.82 | |||
| 250 | $ 14.00 | |||
| 500 | $ 13.59 | |||
Description
General part information
PSA.00.250 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
